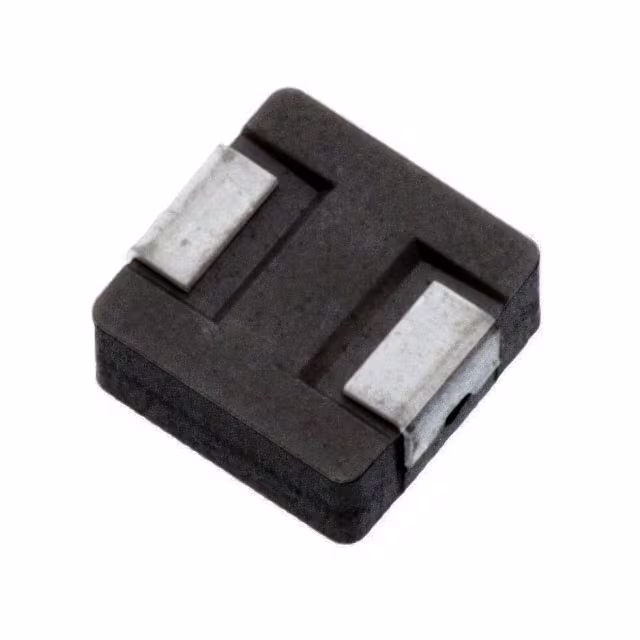

0640CDMCCDS-220MC

Manufacturer :

Sumida Corporation

Product Category :

Fixed Inductors

Ratings :

-

Product Category :

Power Inductors - SMD

Product :

Power Inductors

Current - Saturation (Isat) :

3.2A

Core Type :

Molded

Tolerance :

±20%

Core Material :

Metal

Mounting Type :

Surface Mount

Size / Dimension :

0.280" L x 0.260" W (7.10mm x 6.60mm)

Inductance Frequency - Test :

100 kHz

Manufacturer :

Sumida

Mounting Style :

PCB Mount

Inductance :

22 µH

Product Type :

Fixed Inductors

DC Resistance (DCR) :

133mOhm Max

Series :

0640CDMCC/DS

Application :

Power

Width :

6.8 mm

Frequency - Self Resonant :

-

Height - Seated (Max) :

0.157" (4.00mm)

Package :

Cut Tape (CT)

Q @ Freq :

-

Self Resonant Frequency :

-

Operating Temperature :

-55°C ~ 125°C

Subcategory :

Inductors, Chokes and Coils

Material - Core :

Metal

Packaging :

MouseReel

Brand :

Sumida

Saturation Current :

3.2 A

Features :

-

Shielding :

Shielded

Type :

Molded

Height :

4 mm

Termination :

Standard

Minimum Operating Temperature :

- 55 C

RoHS :

Details

Product Status :

Active

Maximum Operating Temperature :

+ 125 C

Supplier Device Package :

-

Diameter :

-

Termination Style :

SMD/SMT

Current Rating (Amps) :

3.3 A

Package / Case :

Nonstandard

Length :

7.4 mm
