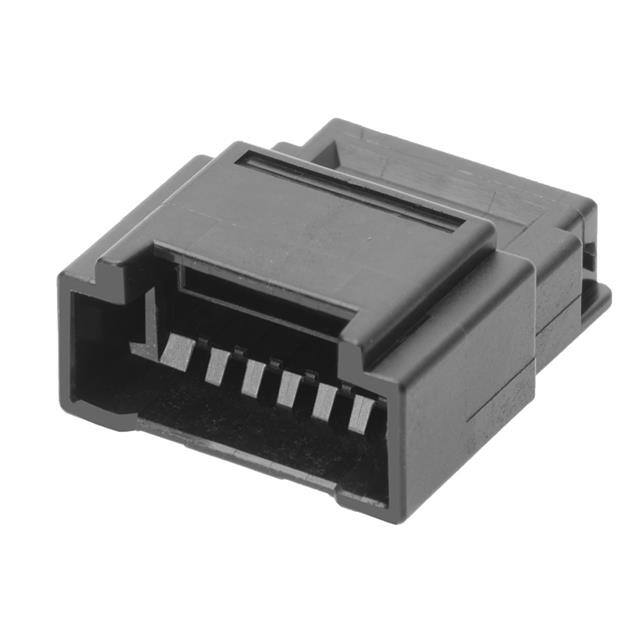

    Images are for reference only.

    Delivery：

    Payment：

    2145252071

    Share

    Or copy the link below:

    Mfr.Part #
    2145252071
    Manufacturer
    Molex
    Package / Case
    Datasheet
    Download
    Description
    1.25MLP SINGLE WTW PLUG HSG 7CKT
    Stock
    8,270
    In Stock ：
    8,270

    Request A Quote(RFQ)

    * Fullname:
    * Company:
    * E-Mail:
      Phone:
      Comment:
    * Quantity:
    Manufacturer :
    Molex
    Product Category :
    Rectangular Connector Housings
    Maximum Operating Temperature :
    + 105 C
    Minimum Operating Temperature :
    - 40 C
    Base Product Number :
    214525
    Current Rating :
    3.2 A
    Number of Rows :
    1 Row
    Contact Type :
    Male Pin
    Housing Material :
    Polyamide (PA)
    Housing Gender :
    PLUG
    Contact Termination :
    Crimp
    Housing Color :
    Black
    Tradename :
    Micro-Lock Plus
    Connector Type :
    PLUG
    Color :
    Black
    Flammability Rating :
    UL 94V-0
    Fastening Type :
    Locking Ramp
    Product Status :
    Active
    Mounting Type :
    Free Hanging (In-Line)
    Operating Temperature :
    -40°C ~ 105°C
    RoHS :
    Details
    Pitch :
    1.25 mm
    Package :
    Bulk
    Row Spacing :
    -
    Series :
    214525
    Termination Style :
    Crimp
    Mounting Style :
    PCB Mount
    Wire Gauge :
    26 AWG to 30 AWG
    Features :
    -
    Product :
    Wire Housings
    Contact Plating :
    Tin
    Number of Positions :
    7 Position
    Packaging :
    Bulk
    Contact Gender :
    Socket (Female)
    Datasheets
    2145252071
    Introducing Rectangular Connector Housings Molex 2145252071 from Xinshop,where excellence meets affordability. This product stands out with its Mounting Type：Free Hanging (In-Line), Operating Temperature：-40°C ~ 105°C, 2145252071 pinout, 2145252071 datasheet PDF, 2145252071 amp .Beyond Rectangular Connector Housings Molex 2145252071 ,we also offer GHR-05V-S, 1-1123722-3, 0022013037, Our vast inventory has you covered. Contact us now for immediate solutions.

    Molex 2145252071


    1 Row Rows Plug Bulk Black 7 Position Positions Free Hanging (In-Line) Male Pin Crimp 214525 Polyamide (PA)

    214525-2071 Overview


    A Plug package is included with it.Its mounting type is Free Hanging (In-Line).Packaging is performed using a Bulk case.It is part of the 214525 Series of products.

    214525-2071 Features


    214525 series


    214525-2071 Applications


    There are a lot of Molex
    214525-2071 Rectangular Connectors applications.


    • Datacom
    • Communication
    • Medical technology
    • Military Technology
    • Measuring & Control Technology
    • Instrumentation
    • Automotive Electronics
    • Telecommunications
    • Data Technology
    • Blowers
