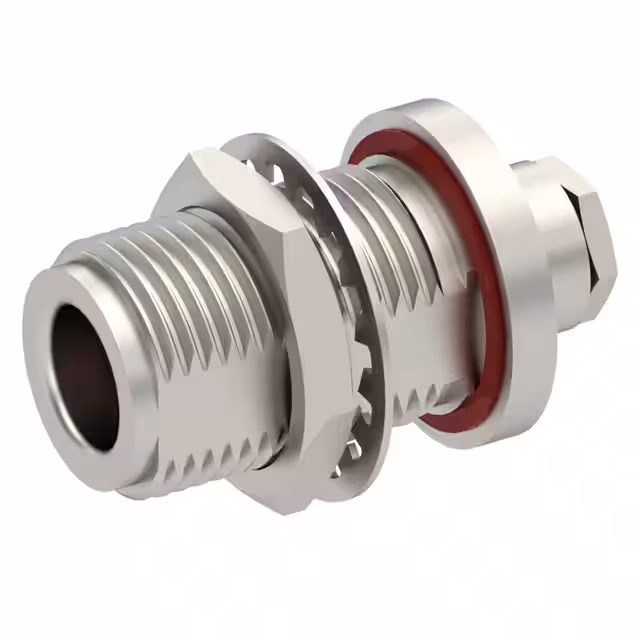

4501-9543-010

Manufacturer :

Radiall USA, Inc.

Product Category :

Coaxial Connector (RF) Assemblies

JESD-609 Code :

e4

Package :

Bulk

Total Number of Contacts :

1

Ingress Protection :

IP67 - Dust Tight, Waterproof

Frequency - Max :

11 GHz

Base Product Number :

4501-9543

Operating Frequency-Max :

18 GHz

Voltage Rating :

350 V

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Gender :

FEMALE

Cable Group :

RG-405 (.085" Semi Rigid)

Operating Temperature :

-55°C ~ 155°C

Mounting Feature :

Bulkhead - Front Side Nut

Reach Compliance Code :

Unknown

Body/Shell Style :

JACK

Filter Feature :

No

Connector Type :

Jack, Female Socket

Product Status :

Active

Center Contact Plating :

Gold

IEC Conformance :

No

Mounting Option 1 :

LOCKING

Housing Color :

Silver

Shell Material :

Steel

ECCN Code :

EAR99

Insertion Loss :

0.15dB

Contact Material :

NOT SPECIFIED

Number of Ports :

1

Insulator Color :

White

Coupling Type :

Threaded

DIN Conformance :

No

Mounting Type :

Panel Mount

Dielectric Material :

Polytetrafluoroethylene (PTFE)

Features :

-

Connector Style :

N Type

Manufacturer :

Radiall

Body Depth :

1.32 inch

Mating Cycles :

500

Fastening Type :

Threaded

Body Finish :

-

Factory Lead Time :

5 Weeks, 5 Days

Termination Type :

CLAMP SOLDER

Contact Finish Termination :

Gold (Au)

Contact Style :

COAX

Impedance :

50Ohm

Includes :

-

HTS Code :

8536.69.40.10

Center Contact Material :

BERYLLIUM COPPER

Series :

-

MIL Conformance :

No

Mounting Style :

Straight

Body Material :

Stainless Steel

Characteristic Impedance :

50 Ω

Panel Mount :

yes

Option :

GENERAL PURPOSE

Contact Termination :

Solder

Reliability :

COMMERCIAL

Subcategory :

RF N Connectors

Shield Termination :

Clamp
