AD9844AJST

Manufacturer :

Analog Devices, Inc.

Product Category :

Sensor and Detector Interfaces

Pbfree Code :

No

Consumer IC Type :

CONSUMER CIRCUIT

Surface Mount :

yes

Number of Pins :

48

Length :

7 mm

Terminal Position :

QUAD

Reach Compliance Code :

Unknown

Terminal Pitch :

0.5 mm

Seated Height-Max :

1.6 mm

Interface :

Serial

Terminal Form :

Gull wing

Output Type :

Logic

Mounting Type :

Surface Mount

Resolution :

1.5 B

Max Supply Voltage :

3.6 V

Pin Count :

48

Packaging :

Tape and Reel

Type :

CCD Signal Processor, 12-Bit

Min Operating Temperature :

-20 °C

Number of Terminals :

48

Base Product Number :

AD9844A

Series :

-

Supplier Device Package :

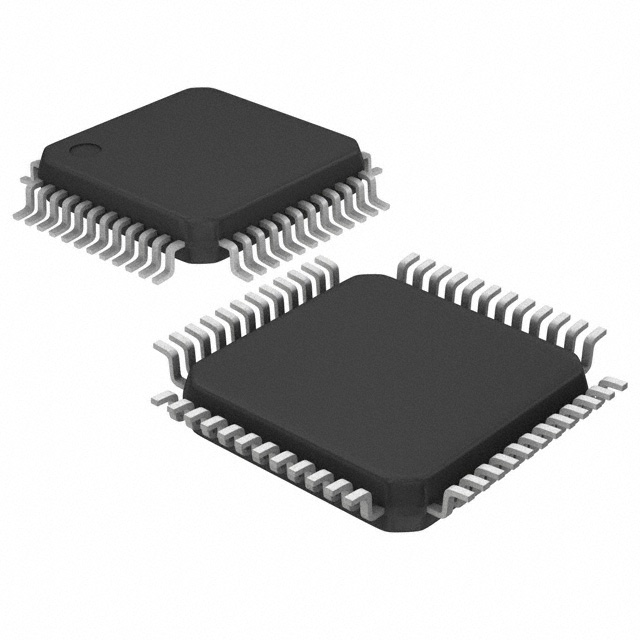

48-LQFP (7x7)

Package Shape :

Square

Number of Functions :

1

RoHS :

Compliant

Temperature Grade :

Other

Supply Voltage-Min (Vsup) :

2.7 V

Terminal Finish :

TIN LEAD

JESD-609 Code :

e0

Max Operating Temperature :

85 °C

Package / Case :

48-LQFP

Qualification Status :

COMMERCIAL

Input Type :

Logic

Min Supply Voltage :

2.7 V

Supply Voltage-Max (Vsup) :

3.6 V

Radiation Hardening :

No

Mount :

Surface Mount

Peak Reflow Temperature (Cel) :

220

Number of A/D Converters :

1

Number of Channels :

1

Width :

7 mm

Operating Supply Voltage :

3.3 V

JESD-30 Code :

S-PQFP-G48

Package :

Bulk

Product Status :

Obsolete

Operating Temperature :

-20°C ~ 85°C
