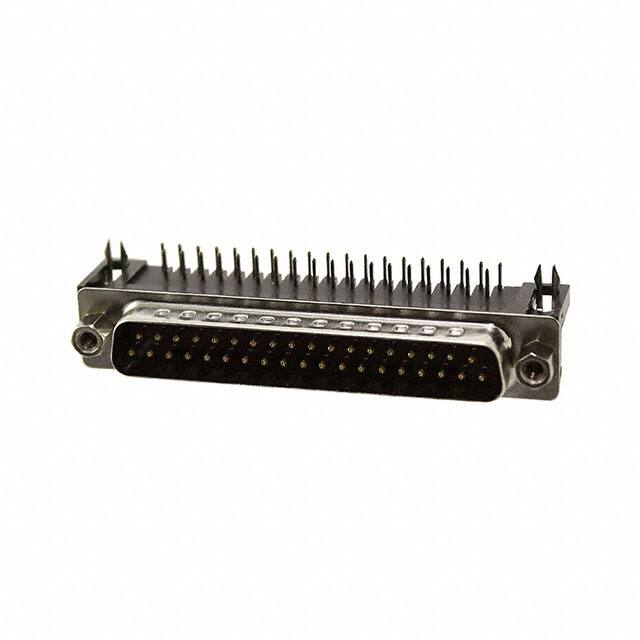

DC37-PL-25
Or copy the link below:
- Mfr.Part #
- DC37-PL-25
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB PLUG 37POS R/A SLDR
- Stock
- 7
- In Stock ：
- 7
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- D-Sub Connector Assemblies
- Plating Thickness :
- 30μin
- Series :
- DPL
- Lead Free :
- Lead Free
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Style :
- RND PIN-SKT
- Reference Standard :
- UL, CSA
- Reliability :
- COMMERCIAL
- Voltage - Rated :
- 250VAC
- Contact Finish Thickness :
- Flash
- Mating Contact Pitch :
- 0.109 inch
- Current Rating (Amps) :
- 1A
- Contact Material :
- COPPER ALLOY
- Total Number of Contacts :
- 37
- Termination :
- Solder
- Body Breadth :
- 0.494 inch
- Number of Rows :
- 2
- Material Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -40°C~105°C
- Shell Finish :
- Zinc
- Flange Feature :
- Mating Side, Female Screwlock (4-40)
- Mounting Type :
- Through Hole, Right Angle
- Mounting Option 2 :
- THREADED INSERT
- Backset Spacing :
- 0.319 (8.10mm)
- Factory Lead Time :
- 9 Weeks
- Contact Pattern :
- STAGGERED
- Dielectric Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- RoHS Status :
- ROHS3 Compliant
- Number of Positions :
- 37
- Connector Style :
- D-Sub
- Body Depth :
- 0.488 inch
- Number Of PCB Rows :
- 2
- Dielectric Withstanding Voltage :
- 1000VAC V
- Insulation Resistance :
- 5000000000Ohm
- PCB Contact Pattern :
- STAGGERED
- Contact Form :
- Stamped
- Material :
- Metal
- Contact Finish :
- Gold
- Shell Size, Connector Layout :
- 4 DC C
- Feature :
- Board Lock, Grounding Indents
- Color :
- Black
- Shell Material, Finish :
- Steel
- Connector Type :
- Plug, Male Pins
- Packaging :
- Tray
- Additional Feature :
- ROHS, W/REMOVABLE JACKSCREWS
- Datasheets
- DC37-PL-25
DPL Series D-Sub Plug, Male Pins 37-Position Solder 4 DC C Through Hole, Right Angle Copper Alloy Gold Steel
DC37-PL-25 Overview
Packaging is in the form of Plug, Male Pins.The mounting type of the device is Through Hole, Right Angle.A Tray case is used to package the product.A product of the DPL Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as ROHS, W/REMOVABLE JACKSCREWS, to name a few.A number of features make the Board Lock, Grounding Indents feature more powerful.-40°C~105°C Operating Temperature is the default operating temperature for the device.
DC37-PL-25 Features
DPL series
DC37-PL-25 Applications
There are a lot of Adam Tech
DC37-PL-25 D-Sub Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
