Latches

3,117 Records

Part	Manufacturer	Description	Price		Stock	Action
SN74AHC16373DGGR	Texas Instruments	IC 16BIT TRANSP D LATCH 48-TSSOP	-	PDF RFQ	3,236 In-stock Warehouse	ADD TO RFQ
SN74ALVCH162373GR	Texas Instruments	IC 16BIT TRANSP D-LATCH 48-TSSOP	-	PDF RFQ	138,051 In-stock Warehouse	ADD TO RFQ
SN74ALVCH16373DGGR	Texas Instruments	IC TRANSPARENT LATCH 48-TSSOP	-	PDF RFQ	100 In-stock Warehouse	ADD TO RFQ
MM74HC373WM	onsemi	IC LATCH OCTAL 3 STATE 20SOIC	-	PDF RFQ	6,322 In-stock Warehouse	ADD TO RFQ
SN74LVTH16373DLR	Texas Instruments	IC D-TYPE LATCH TRI-ST 48-SSOP	-	PDF RFQ	7,141 In-stock Warehouse	ADD TO RFQ
SN74AHC373DW	Texas Instruments	IC OCT TRANSP D-TYP LATCH 20SOIC	-	PDF RFQ	6,758 In-stock Warehouse	ADD TO RFQ
CD74HCT533E	Texas Instruments	IC OCT TRANSP LTCH INV 3ST 20DIP	-	PDF RFQ	1,493 In-stock Warehouse	ADD TO RFQ
MC74AC259DG	onsemi	IC LATCH ADDRESS 8BIT 16-SOIC	-	PDF RFQ	814 In-stock Warehouse	ADD TO RFQ
SN74ALS259D	Texas Instruments	IC LATCH 8BIT ADDRESS 16-SOIC	-	PDF RFQ	8,088 In-stock Warehouse	ADD TO RFQ
TPIC6A259DW	Texas Instruments	IC 8-BIT ADDRESSABL LTCH 24SOIC	-	PDF RFQ	350 In-stock Warehouse	ADD TO RFQ
TPIC6259N	Texas Instruments	IC 8-BIT ADDRESSABLE LATCH20-DIP	-	PDF RFQ	2,555 In-stock Warehouse	ADD TO RFQ
74LVC373APW,118	Nexperia	IC OCTAL TRANSP LATCH 20-TSSOP	-	PDF RFQ	6,227 In-stock Warehouse	ADD TO RFQ
74LVC373APW,112	Nexperia	IC OCTAL D TRANSP LATCH 20TSSOP	-	PDF RFQ	875 In-stock Warehouse	ADD TO RFQ
SN74AHCT373NSR	Texas Instruments	IC LATCH TRANSP OCTAL D 20SO	-	PDF RFQ	3,919 In-stock Warehouse	ADD TO RFQ
SN74AHC573QPWRG4Q1	Texas Instruments	IC D-TYPE LATCH SGL 3-ST 20TSSOP	-	PDF RFQ	6,000 In-stock Warehouse	ADD TO RFQ

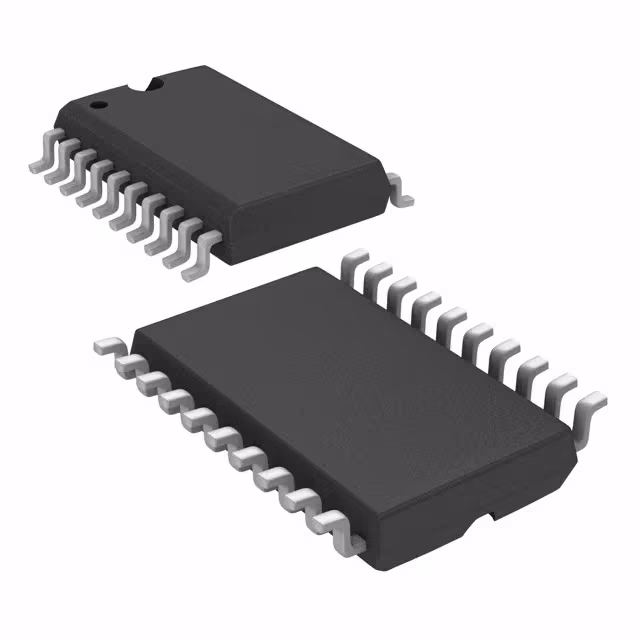

CAHCT573QDWRG4Q1	Texas Instruments	CAHCT573QDWRG4Q1	-	PDF RFQ	2,000 In-stock Warehouse	ADD TO RFQ
SN74LVTH373NSR	Texas Instruments	IC ABT OCT TRANSP LATCH 20SO	-	PDF RFQ	3,950 In-stock Warehouse	ADD TO RFQ
SN74ACT563PWR	Texas Instruments	IC OCTAL D TRANSP LATCH 20-TSSOP	-	PDF RFQ	5,251 In-stock Warehouse	ADD TO RFQ
CLVC573AQPWRG4Q1	Texas Instruments	IC OCTAL TRANSP D LATCH 20-TSSOP	-	PDF RFQ	1,900 In-stock Warehouse	ADD TO RFQ
SN74LV373AIPWRG4Q1	Texas Instruments	IC OCT TRANSP D-TYP LATCH20TSSOP	-	PDF RFQ	8,093 In-stock Warehouse	ADD TO RFQ
