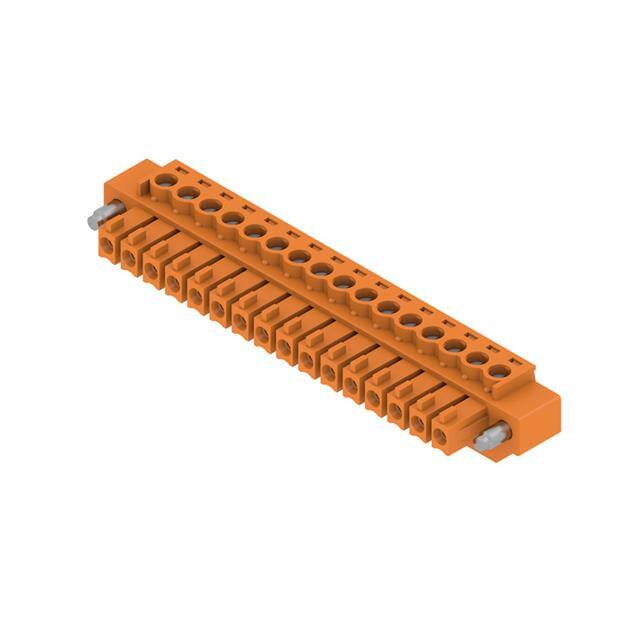

1560110000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

MIL Conformance :

No

Mounting Type :

Free Hanging (In-Line)

Length :

36.6mm

Feature :

Retention Latches (Non-Wire Side)

Material Flammability Rating :

UL94 V-0

Mount :

Cable, Free Hanging

JESD-609 Code :

e3

Number of Contacts :

7

Wire Gauge or Range - mm² :

0.2-2.5mm2

Option :

GENERAL PURPOSE

Screw Size :

M2.5

IEC Conformance :

No

Pitch :

0.200 5.08mm

Filter Feature :

No

Number of Rows :

1

Orientation :

Straight

Flammability Rating :

UL94 V-0

Wire Gauge (Max) :

26 AWG

Moisture Sensitivity Level (MSL) :

Not Applicable

Published :

2009

Height :

26.9mm

Wire Strip Length :

7mm

Voltage :

300V

Current :

10A

Mixed Contacts :

No

Radiation Hardening :

No

Pbfree Code :

yes

Operating Temperature :

-50°C~100°C

Termination Style :

Screw - Clamping Yoke (Tension Sleeve)

Contact Material :

COPPER ALLOY

Housing Material :

Polybutylene Terephthalate (PBT)

Contact Mating Finish :

Tin

DIN Conformance :

No

Insulation Height :

1.059 26.90mm

Torque - Screw :

0.4-0.5 Nm (3.5-4.4 Lb-In)

Number of Levels :

1

Wire Gauge or Range - AWG :

12-26 AWG

RoHS Status :

RoHS Compliant

Series :

Omnimate BL

Current - IEC :

15A

Lead Free :

Lead Free

Voltage - IEC :

400V

Wire Gauge (Min) :

12 AWG

Width :

14.3mm

Color :

Black

Termination :

Screw

Packaging :

Bulk

UL Flammability Code :

94V-0

Plug Wire Entry :

270°

Type :

Plug, Female Sockets

Number of Positions :

7
