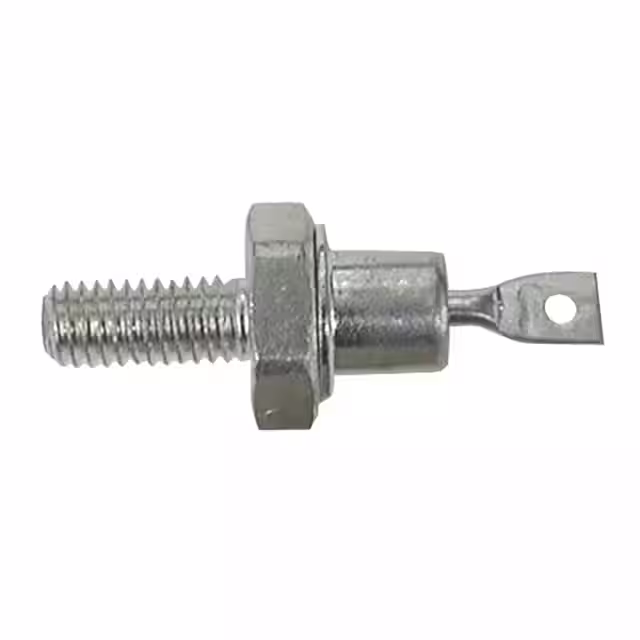

1N3001R
Or copy the link below:
- Mfr.Part #
- 1N3001R
- Manufacturer
- Solid State Inc.
- Package / Case
- DO-203AA, DO-4, Stud
- Datasheet
- Download
- Description
- DO4 10 WATT ZENER DIODES
- Stock
- 20
- In Stock ：
- 20
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Solid State Inc.
- Product Category :
- Diodes - Zener - Single
- Pin Count :
- 1
- Max Power Dissipation :
- 10W
- Diode Type :
- ZENER DIODE
- Polarity :
- Unidirectional
- Published :
- 1999
- Impedance :
- 18ohm
- HTS Code :
- 8541.10.00.50
- Factory Lead Time :
- 30 Weeks
- Terminal Finish :
- TIN LEAD
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Operating Temperature :
- -65°C~175°C
- Packaging :
- Bulk
- JESD-609 Code :
- e0
- Case Connection :
- CATHODE
- Current - Reverse Leakage @ Vr :
- 10μA @ 51.7V
- ECCN Code :
- EAR99
- Terminal Position :
- UPPER
- Pbfree Code :
- No
- Base Part Number :
- 1N3001
- Diode Element Material :
- SILICON
- Impedance-Max :
- 18ohm
- Mounting Type :
- Chassis, Stud Mount
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Package / Case :
- DO-203AA, DO-4, Stud
- Configuration :
- Single
- Qualification Status :
- Not Qualified
- Number of Elements :
- 1
- Voltage - Zener (Nom) (Vz) :
- 68V
- Working Test Current :
- 37mA
- Terminal Form :
- Solder Lug
- Reference Voltage :
- 68V
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Lifecycle Status :
- IN PRODUCTION (Last Updated: 1 month ago)
- Zener Voltage :
- 68V
- Number of Terminations :
- 1
- RoHS Status :
- Non-RoHS Compliant
- Tolerance :
- ±5%
- Mount :
- Chassis, Stud
- Voltage Tol-Max :
- 5%
- Voltage - Forward (Vf) (Max) @ If :
- 1.5V @ 2A
- JESD-30 Code :
- O-MUPM-D1
- Datasheets
- 1N3001R
ZENER DIODE 18Ohm ±5% 68V 10μA @ 51.7V -65°C~175°C 10W 1 Terminations DO-203AA, DO-4, Stud
1N3001RB Overview
A reverse leakage current of 10μA @ 51.7V is required to supply this electrical device.Voltage (Tol) is limited to 5%.Zener (Nom)'s maximum voltage is reduced to zero during operation.To operate this device, set the working test voltage to 37mA.1.5V @ 2A is reached when the maximum voltage - Forward (Vf) is supplied for its operation.
1N3001RB Features
reverse leakage current of 10μA @ 51.7V
10μA @ 51.7V is the maximum voltage (Tol)
the working test voltage to 37mA
minimal dynamic impedance is 37mA
1N3001RB Applications
There are a lot of Microsemi Corporation
1N3001RB applications of zener single diodes.
