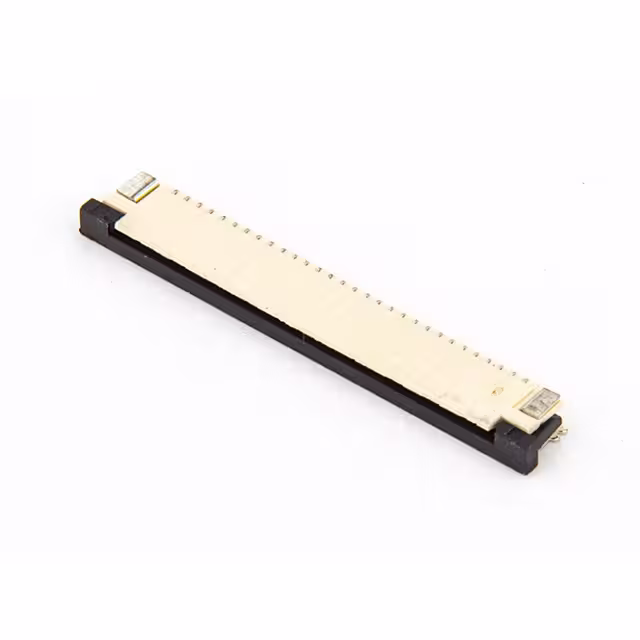

2434-C24TD1T
Or copy the link below:
- Mfr.Part #
- 2434-C24TD1T
- Manufacturer
- Oupiin
- Package / Case
- Datasheet
- Download
- Description
- FFC/FPC CONNECTOR, 24 PIN, TIN P
- Stock
- 16,804
- In Stock ：
- 16,804
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Oupiin
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Flat Flex Type :
- FFC, FPC
- Contact Material :
- Phosphor Bronze
- Actuator Material :
- Liquid Crystal Polymer (LCP)
- Voltage Rating :
- -
- Material Flammability Rating :
- UL94 V-0
- Base Product Number :
- 2434-C24
- Features :
- Solder Retention, Zero Insertion Force (ZIF)
- Cable End Type :
- Straight
- Housing Color :
- -
- Mounting Type :
- Surface Mount, Right Angle
- Actuator Color :
- -
- Height Above Board :
- 0.098" (2.50mm)
- Contact Finish :
- Tin
- Series :
- 2434-C
- Contact Finish Thickness :
- 100.0µin (2.54µm)
- Package :
- Tape and Reel (TR)
- Current Rating (Amps) :
- 0.5A
- Operating Temperature :
- -25°C ~ 85°C
- Locking Feature :
- Slide Lock
- Housing Material :
- Liquid Crystal Polymer (LCP)
- Connector/Contact Type :
- Contacts, Top
- FFC, FCB Thickness :
- 0.30mm
- Termination :
- Solder
- Product Status :
- Active
- Mating Cycles :
- -
- Pitch :
- 0.039" (1.00mm)
- Number of Positions :
- 24
- Datasheets
- 2434-C24TD1T
2434-C Series FFC, FPC Contacts, Top 0.039" (1.00mm) Solder 24 Positions Surface Mount, Right Angle Tin -25°C ~ 85°C 0.5A
2434-C24TD1T Overview
Surface Mount, Right Angle is the type of mounting for the device.The product is a member of the 2434-C Series.It operates at an operating temperature of -25°C ~ 85°C.
2434-C24TD1T Features
2434-C series
2434-C24TD1T Applications
There are a lot of Oupiin
2434-C24TD1T FFC, FPC (Flat Flexible) Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
