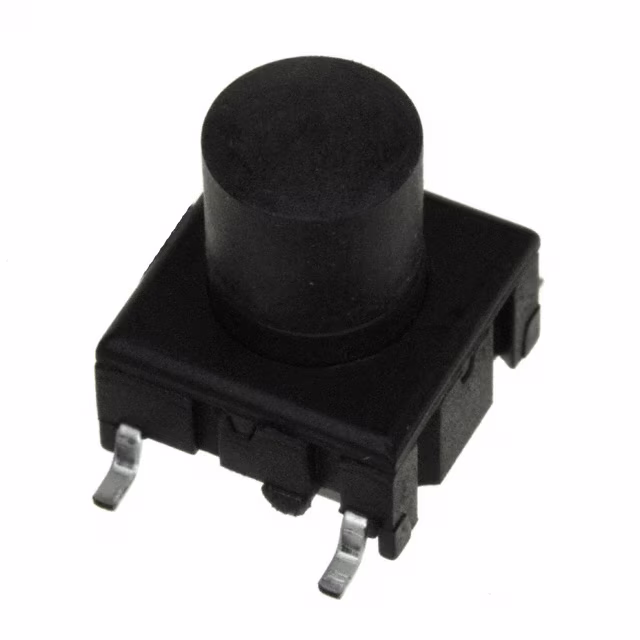

3ESH9-12.0

Manufacturer :

MEC switches

Product Category :

Contact Plating :

Silver

Mount :

Standard

Switch Function :

OFF - (ON)

Length :

9.1 mm

Color :

Black

Actuator Style :

Round Button

Actuator :

Round

ECCN :

EAR99

Termination Style :

Gull Wing Lead

Switch Function Configuration :

N.O.

Width :

9.1 mm

Power Rating :

-

Voltage Rating (VDC) :

24(V)

Illumination Type :

Not Required

Contact Form :

SPST

Mounting Style :

SMD/SMT

Actuator Length (mm) :

6.9(mm)

Operating Temp Range :

-40C to 160C

Actuator Color :

Black

RoHS :

Details

Operating Force :

3(N)

Height :

12 mm

Itar Registered :

No

Product Height (mm) :

12(mm)

Product Length (mm) :

10.1(mm)

IP Rating :

IP67

Terminal Type :

Gull wing

Current Rating (Max) :

0.05(A)

Pole Throw Configuration :

SPST

Series :

3E

Lamp Type :

-

Illumination Color :

-

Tradename :

multimec

Contact Material :

Gold

Current Rating :

50 mA

Body Orientation :

Straight

Product Depth (mm) :

14(mm)
