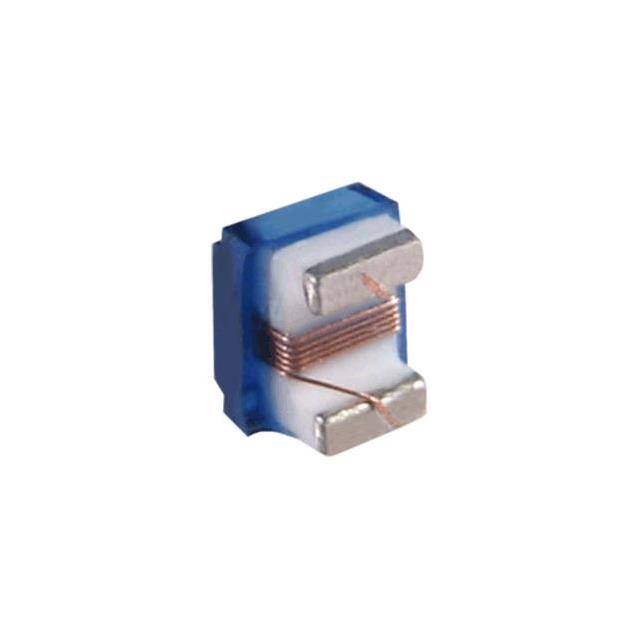

CT1206CSF-010K

Manufacturer :

Central Technologies

Product Category :

Fixed Inductors

Operating Temperature :

-40°C ~ 125°C

Rated Current-Max :

1 A

Special Feature :

Q MEASURED AT 300 MHZ

Inductor Type :

GENERAL PURPOSE INDUCTOR

DC Resistance (DCR) :

80mOhm

Frequency - Self Resonant :

4GHz

Number of Functions :

1

Inductance :

10 nH

Case/Size Code :

1206

Terminal Placement :

DUAL ENDED

Core Material :

Ceramic

HTS Code :

8504.50.80.00

Shielded :

No

Type :

Wirewound

Tolerance :

10%

Number of Terminals :

2

Product Status :

Active

Inductance-Nom (L) :

0.01 µH

Package :

Tape and Reel (TR)

DC Resistance :

0.08 Ω

Pbfree Code :

yes

Quality Factor-Min (at L-nom) :

40

Terminal Finish :

Matte Tin (Sn)

Shape/Size Description :

RECTANGULAR PACKAGE

ECCN Code :

EAR99

Terminal Shape :

ONE SURFACE

Mounting Type :

Surface Mount

Test Frequency :

100 MHz

Inductor Application :

RF INDUCTOR

JESD-609 Code :

e3

Reach Compliance Code :

Compliant

Surface Mount :

yes

Series :

ct1206csf
