ESD5V0D3B

Manufacturer :

YANGJIE

Product Category :

Rep Pk Reverse Voltage-Max :

5V

Operating Temperature :

-55°C~150°C TJ

Surface Mount :

yes

Terminal Position :

Dual

Applications :

GENERAL PURPOSE

RoHS Status :

ROHS3 Compliant

Non-rep Peak Rev Power Dis-Max :

500W

Number of Terminations :

2

Time@Peak Reflow Temperature-Max (s) :

10

Published :

2007

Bidirectional Channels :

1

Power - Peak Pulse :

500W

Peak Reflow Temperature (Cel) :

260

Voltage - Reverse Standoff (Typ) :

5V Max

Diode Element Material :

SILICON

JESD-30 Code :

R-PDSO-G2

Current - Peak Pulse (10/1000μs) :

8A 8/20μs

Capacitance @ Frequency :

35pF @ 1MHz

Terminal Finish :

Matte Tin (Sn)

Power Line Protection :

No

Mounting Type :

Surface Mount

Type :

Zener

Polarity :

Unidirectional

Packaging :

Tape and Reel (TR)

Factory Lead Time :

12 Weeks

ECCN Code :

EAR99

Pin Count :

2

JESD-609 Code :

e3

Voltage - Breakdown (Min) :

5.8V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Elements :

2

Base Part Number :

ESD

Pbfree Code :

yes

Voltage - Clamping (Max) @ Ipp :

13.5V

Terminal Form :

Gull wing

Configuration :

COMMON CATHODE, 2 ELEMENTS

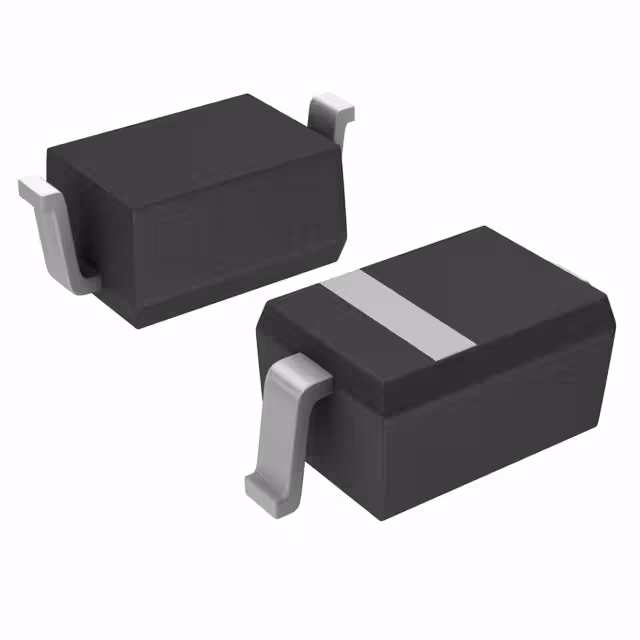

Package / Case :

SC-76, SOD-323
