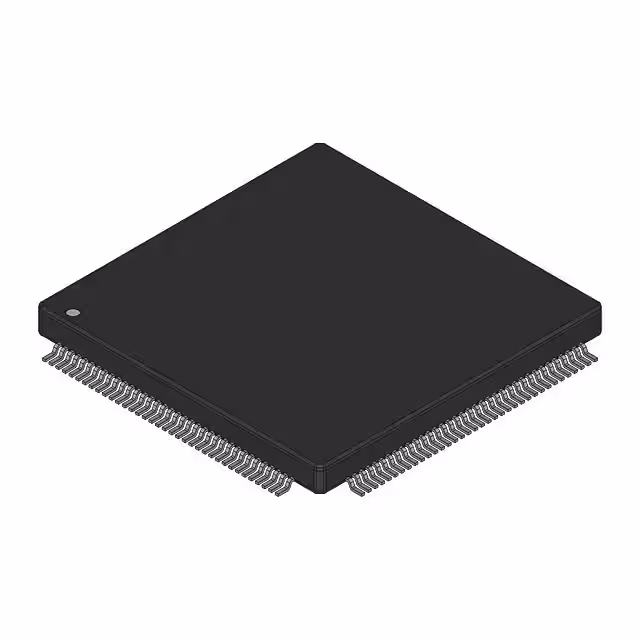

TMS320BC51PQA80G4

Manufacturer :

Texas Instruments

Product Category :

DSP (Digital Signal Processors)

Pbfree Code :

No

Supply Voltage :

5V

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Memory Size :

16kB

Format :

FIXED POINT

uPs/uCs/Peripheral ICs Type :

DIGITAL SIGNAL PROCESSOR, OTHER

HTS Code :

8542.31.00.01

RAM Size :

4.1kB

Power Supplies :

5V

Number of Pins :

132

RAM (words) :

2080

Lead Free :

Contains Lead

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Operating Supply Voltage :

5V

Additional Feature :

1K WORDS DATA/PROG RAM

Address Bus Width :

16

Number of Terminations :

132

Height Seated (Max) :

4.57mm

Terminal Position :

QUAD

Temperature Grade :

Industrial

Operating Temperature (Max) :

85°C

Length :

24.13mm

Boundary Scan :

yes

Data Bus Width :

16b

Barrel Shifter :

yes

Low Power Mode :

yes

Bit Size :

16

Terminal Pitch :

0.635mm

Internal Bus Architecture :

Multiple

Terminal Form :

Gull wing

Operating Temperature (Min) :

-40°C

Qualification Status :

Not Qualified

ECCN Code :

3A001.A.3

RoHS Status :

RoHS Compliant

Surface Mount :

yes

Frequency (Max) :

80MHz

Pin Count :

132
