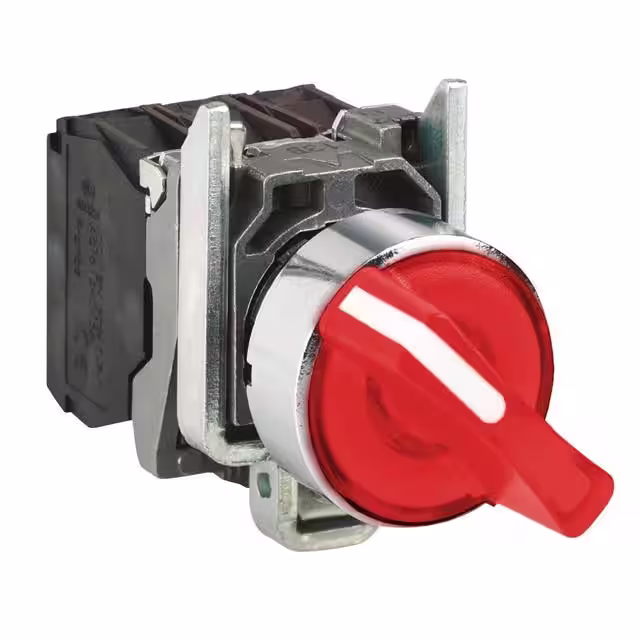

XB4BK124G5

Manufacturer :

Schneider Electric

Product Category :

Current Rating (Amps) :

6A (AC), 550mA (DC)

Approval Agency :

CSA, UL

Panel Cutout Dimensions :

Circular - 22.00mm Dia

Control Type :

Selector

Brand :

Schneider Electric

Switch Type :

ROTARY SWITCH

Number of contacts as normally open contact :

1

Ingress Protection :

IP66 - Dust Tight, Water Resistant

Voltage Rating - DC :

125 V

Depth Behind Flange :

-

Subcategory :

Switches

Illumination Type, Color :

Neon, Red

Type of control element :

Short thumb-grip

Switch Function :

On-Off, Off-On

Termination Style :

Screw Terminal

Lamp Type :

LED

Features :

-

Mechanical Life :

1,000,000 Cycles

Degree of protection (NEMA) :

Other

Manufacturer :

Schneider Electric

Package :

Box

Type of electric connection :

Screw connection

Illumination :

Illuminated

Colour front ring :

Chrome

Number of contacts as change-over contact :

0

With front ring :

yes

Type :

Standard

Illumination Color :

Red

Illumination Voltage (Nominal) :

110 VAC

Circuit :

DPST-NO/NC

Series :

Harmony XB4

Product Status :

Active

Electrical Life :

1,000,000 Cycles

Product Category :

Control Switches

With light source :

yes

Actuator :

Knob

Mounting Style :

Panel Mount

Voltage Rating - AC :

120 V

Operating Temperature :

-25°C ~ 70°C

Number of contacts as normally closed contact :

1

Material front ring :

Metal

RoHS :

Details

Mounting Type :

Panel Mount

Product Type :

Control Switches

Degree of protection (IP) :

IP66

Number of Positions :

2

Current Rating :

3 A

Reach Compliance Code :

Unknown
