What is USB Cable, How to Install a USB Expander?

J0Z$DOB9}`YTD1]10MW4_YA

Introduction:

USB cables are designed to transmit data and provide power to connected devices.In this article, we'll address some frequently asked questions about USB cables like definition, usages,types,compatibility etc. to help you navigate the world of connectivity.

What is a USB cable?

A USB (Universal Serial Bus) cable is a standardized cable used to connect various devices to a computer or other compatible devices. USB cables feature different connector types, such as USB-A, USB-B, USB-C, and micro USB, allowing for data transfer, charging, and other functionalities.

Is a USB cable the same as a charging cable? USB cables can be used for charging purposes, but not all USB cables are specifically designed for charging. Some USB cables may only support data transfer and not provide the necessary power output for charging devices. When choosing a cable for charging, ensure it is rated for the required power output and compatible with your device's charging standards.

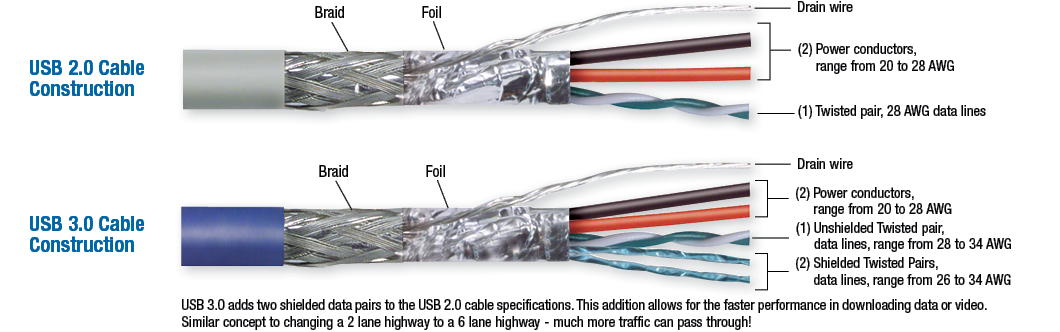

USB Cable Construction

USB cables are typically constructed with the following components:

1. Connectors: USB cables have connectors on both ends that plug into devices. The most common types of USB connectors are Type-A, Type-B, Micro-USB, Mini-USB, and USB Type-C. The choice of connector depends on the devices being connected.

2. Conductors: Inside the cable, there are multiple conductors that carry electrical signals and power. USB cables typically have four conductors: two for data transfer (D+ and D-) and two for power supply (VCC and GND).

3. Insulation: Each conductor is individually insulated to prevent short circuits and interference between the different signals. Insulation materials such as PVC (Polyvinyl Chloride) or TPE (Thermoplastic Elastomer) are commonly used.

4. Shielding: USB cables often include shielding to protect the data signals from electromagnetic interference (EMI). Shielding can be in the form of a braided metal mesh or a foil wrap around the conductors.

5. Twisting: The data conductors (D+ and D-) are often twisted together to reduce crosstalk and improve signal integrity. Twisting helps to minimize the interference between the two data signals.

6. Jacket: The outermost layer of the cable is called the jacket. It provides protection to the internal components and gives the cable its overall durability and flexibility. The jacket is typically made of materials like PVC or TPE.

It's important to note that USB cables come in various versions, such as USB 2.0, USB 3.0, USB 3.1, and USB 3.2, each with different data transfer speeds and power capabilities. The construction of the cable may vary slightly depending on the version and intended use.

When purchasing USB cables, it's advisable to choose cables from reputable manufacturers to ensure their quality and compliance with USB specifications.

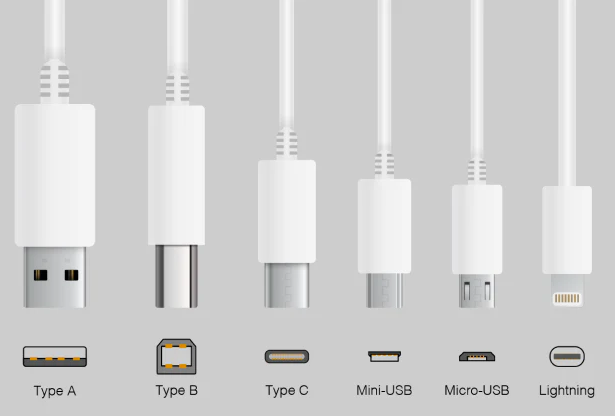

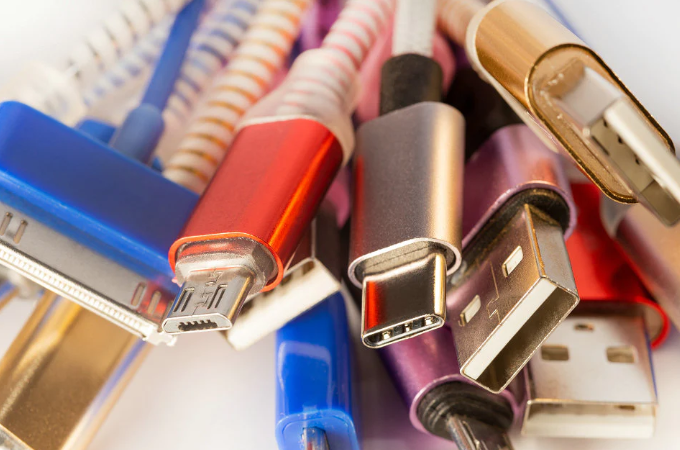

USB-A, USB-B, and USB-C are different types of connectors used in USB cables. Here are the main differences between them:

$6J69HW@YONS5U]Z2T2UU1K

1. USB-A:

- USB-A is the most common and traditional USB connector type.

- It has a rectangular shape with a flat and wide end.

- USB-A connectors are typically found on host devices such as computers, laptops, game consoles, and power adapters.

- USB-A ports are often used for data transfer, charging devices, and connecting peripherals like keyboards, mice, and printers.

2. USB-B:

- USB-B connectors are less common than USB-A connectors.

- They have a square or rectangular shape with a narrower and taller end compared to USB-A.

- USB-B connectors are typically found on peripheral devices like printers, scanners, external hard drives, and some audio equipment.

- USB-B ports are used to connect these peripheral devices to host devices.

3. USB-C:

- USB-C is a newer and more versatile connector type.

- It has a small, oval-shaped design with a reversible plug, which means it can be inserted into a device in any orientation.

- USB-C connectors are found on many modern devices, including smartphones, tablets, laptops, and even some desktop computers.

- USB-C ports support various functionalities, including data transfer, charging, video output, and audio connectivity.

- USB-C cables can also be used to connect devices directly to each other without the need for adapters or additional cables.

USB-A is the standard connector found on most computers and peripherals, USB-B is used primarily for connecting peripherals to host devices, and USB-C is a newer, more versatile connector that is becoming increasingly common in modern devices. USB-C offers faster data transfer speeds, higher power delivery capabilities, and the convenience of a reversible plug.

What is USB Extension Cable?

A USB extension cable is a type of cable that allows you to extend the length of a standard USB cable. It is useful when you need to connect USB devices that are located far away from your computer or other USB host devices.

USB extension cables typically have a male connector on one end and a female connector on the other. The male connector plugs into the USB port of the host device, such as a computer, while the female connector accepts the standard USB cable from the device you want to connect.

The construction of a USB extension cable is similar to a regular USB cable. It consists of conductors for data transmission and power, insulation to protect the conductors, shielding to reduce electromagnetic interference, and a jacket for overall protection and durability.

USB extension cables come in various lengths, typically ranging from a few feet to several meters. They are available in different USB versions, such as USB 2.0, USB 3.0, and USB 3.1, so it's important to choose an extension cable that matches the capabilities of your devices to ensure optimal performance.

How do I install a USB extender?

To install a USB extender, follow these steps:

- Plug one end of the USB extender into the USB port of your computer.

- Connect the other end of the extender to the USB device you want to extend.

- Ensure the extender is securely connected on both ends.

- Your computer should detect the USB device, and it will be ready to use.

USB Cables Gender

Do USB cables have a gender? Yes, USB cables have different genders. USB cables with a USB-A connector have a male end, while those with a USB-B or USB-C connector have a female end. The gender of the USB cable should match the corresponding connector on the device you are connecting.

How to splice a USB-C male to a USB micro male?

Splicing USB cables is not recommended as it can lead to compatibility issues and potential damage. USB-C and USB micro connectors have different pin arrangements, and attempting to splice them together can result in incorrect wiring or short circuits. It's best to use appropriate adapters or cables designed for the specific connection you need.

How to convert USB-C to Micro USB?

To convert USB-C to Micro USB, you can use a USB-C to Micro USB adapter or cable. These adapters or cables have a USB-C male connector on one end and a Micro USB female connector on the other, allowing you to connect Micro USB devices to USB-C ports.

Price--Why are USB-C cables so expensive?

USB-C cables may appear more expensive compared to older USB cables due to several factors, including:

- USB-C cables often support faster data transfer speeds and higher power delivery capabilities.

- USB-C cables require more complex circuitry and components.

- USB-C is a relatively newer standard, and the demand for USB-C cables is higher than the supply, affecting prices.

- Premium materials or additional features (e.g., braided cables, reinforced connectors) can also contribute to higher costs.

Conclusion:

USB cables play a vital role in connecting and transferring data between devices. Understanding their compatibility, usage, and limitations is crucial for seamless connectivity. By addressing these frequently asked questions, we hope to have provided you with valuable insights into the world of USB cables. Remember to choose the correct cable type for your specific needs and always prioritize safety and compatibility.

Frequently Asked Questions

1. Can I use a USB-C cable for my USB 3.0 external hard drive?

Yes, you can use a USB-C cable with a USB 3.0 external hard drive. USB-C is a connector type, while USB 3.0 is a data transfer standard. However, to ensure compatibility, make sure your USB-C cable supports USB 3.0 or higher speeds.

3. How do I make a male-to-male USB cable?

Creating a male-to-male USB cable is not recommended as it can lead to potential damage to the devices involved. Male-to-male USB cables have the same type of connectors on both ends, which can short-circuit and damage the USB ports. It's best to use appropriate cables for different USB device connections.

4. How to extend the length of the USB cable up to 50 meters?

Extending USB cables beyond 5 meters can cause signal degradation and loss of data integrity. However, you can use USB extension solutions such as active USB extension cables or USB over Ethernet extenders. These devices use specialized circuitry to boost the USB signals and allow for longer cable runs, up to 50 meters or more.

5. What happens if you plug a USB cable into an Ethernet port?

Plugging a USB cable into an Ethernet port will not establish a connection. USB and Ethernet are different communication protocols that use different physical connectors. Attempting to plug a USB cable into an Ethernet port may damage the cable or port and will not result in any data transfer or communication.
