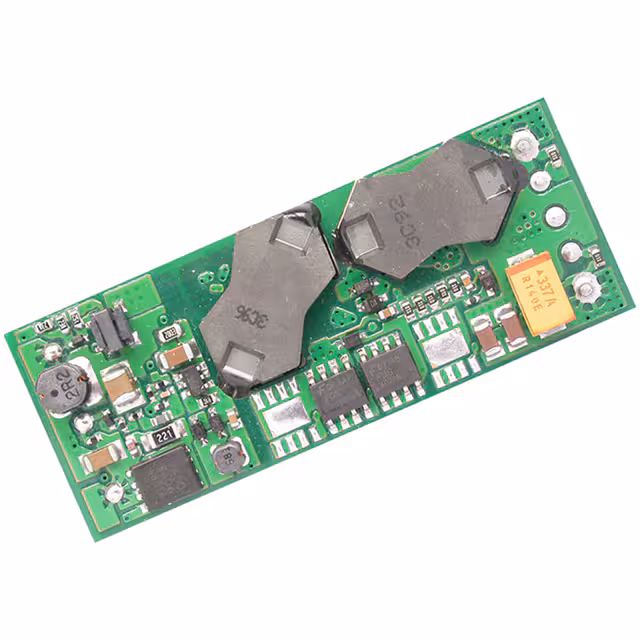

0RCB-60TV80

Manufacturer :

Bel Fuse, Inc.

Product Category :

Type :

Isolated Module

JESD-30 Code :

R-XDMA-P8

Packaging :

Bulk

Voltage - Output 1 :

1.8V

Trim/Adjustable Output :

yes

ECCN Code :

EAR99

Voltage - Input (Min) :

36V

Applications :

ITE (Commercial)

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Control Features :

Enable, Active High

Number of Terminations :

8

Current - Output (Max) :

25A

Terminal Position :

Dual

RoHS Status :

ROHS3 Compliant

Output Voltage :

1.8V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Terminal Form :

PIN/PEG

Size / Dimension :

2.30Lx0.90W x 0.37 H 58.4mmx22.9mmx9.4mm

Voltage - Isolation :

1.5kV

Height Seated (Max) :

9.5mm

Efficiency :

89%

Mounting Type :

Through Hole

Package / Case :

8-DIP Module, 1/8 Brick

Additional Feature :

SEATED HGT-NOM, WD-MAX

Surface Mount :

No

Power (Watts) :

45W

Voltage - Input (Max) :

75V

Number of Outputs :

1

Series :

0RCB-60T

Feature :

Remote On/Off, OCP, OTP, OVP, SCP, UVLO

Operating Temperature :

-40°C~85°C

Total Power Output-Max :

45W

Number of Functions :

1

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Input Voltage-Nom :

48V

Width :

22.76mm
