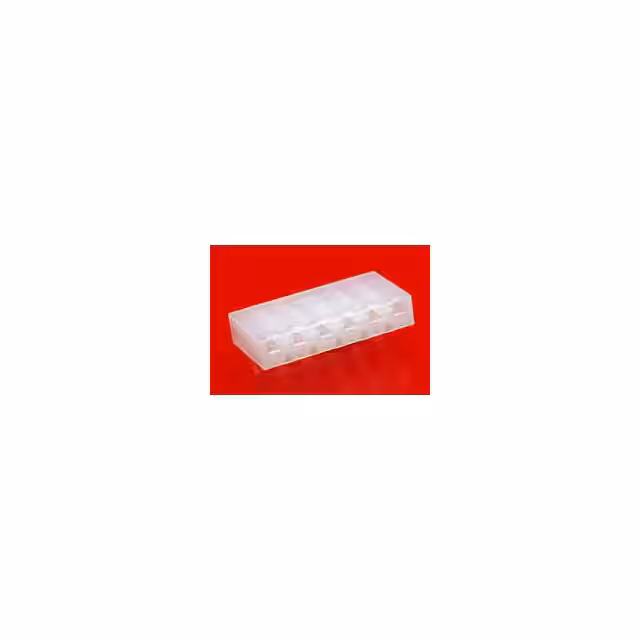

10-01-1114

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Depth :

15.9 mm

Dielectric Withstanding Voltage :

1500VAC V

Termination Style :

Crimp

Contact Pattern :

RECTANGULAR

Reliability :

COMMERCIAL

Mating Contact Pitch :

0.2 inch

Glow Wire Compliant :

Non-Compliant

Product Depth (mm) :

6(mm)

Brand :

Molex

Total Number of Contacts :

11

Color :

Black

Minimum Operating Temperature :

- 40 C

Body Depth :

0.626 inch

ECCN Code :

EAR99

Orientation :

Straight

Maximum Operating Temperature :

+ 105 C

Product Type :

Headers and Wire Housings

Pitch :

5.08 mm

Panel Mount :

No

Width :

6 mm

Durability :

25 Cycles

Manufacturer :

Molex

Termination :

Crimp

Radiation Hardening :

No

Mounting Angle :

Straight

Number of Rows :

1 Row

Mounting Style :

Cable Mount / Free Hanging

Type :

Housing

Series :

3001

Connector Type :

BOARD CONNECTOR

Contact Design :

STRIP OR LOOSE

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Gender :

Socket (Female)

Flammability Rating :

UL 94 V-2

Body Breadth :

0.236 inch

Length :

55.88 mm

Housing Material :

Nylon

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Additional Feature :

POLARIZED

Mount :

CABLE

Option :

GENERAL PURPOSE

Housing Gender :

Receptacle

Product Status :

Active

Tradename :

KK

Number of Contacts :

11(POS)

Filter Feature :

No

MIL Conformance :

No

Mixed Contacts :

No

Polarization Key :

POLARIZED HOUSING

Insertion Force-Max :

6.672 N

Operating Temp Range :

-40C to 105C

Product Length (mm) :

55.88(mm)

IEC Conformance :

No

Withdrawl Force-Min :

1.112 N

UL Flammability Code :

94V-2

Product Height (mm) :

15.9(mm)

Body/Shell Style :

PLUG

Voltage Rating Max :

250V

Packaging :

Bag

Package :

Box

Product :

Wire Housings

Mounting Type :

CABLE

Pbfree Code :

yes

Lifecycle Status :

Production (Last Updated: 2 years ago)

Product Category :

Headers and Wire Housings

Country of Origin :

In

Pitch (mm) :

5.08(mm)

Rated Current (Signal) :

7 A

Subcategory :

Headers and Wire Housings

Insulation Resistance :

500000000000 Ω

RoHS :

Details

Housing Color :

Natural

Contact Material :

NOT SPECIFIED

Gender :

Receptacle

Number of Contact Rows :

1

Number of Positions :

11 Position

HTS Code :

8536.69.40.40

DIN Conformance :

No

Reach Compliance Code :

Compliant

Reference Standard :

UL, CSA

Body Orientation :

Straight

Termination Type :

Crimp

Application :

Signal
