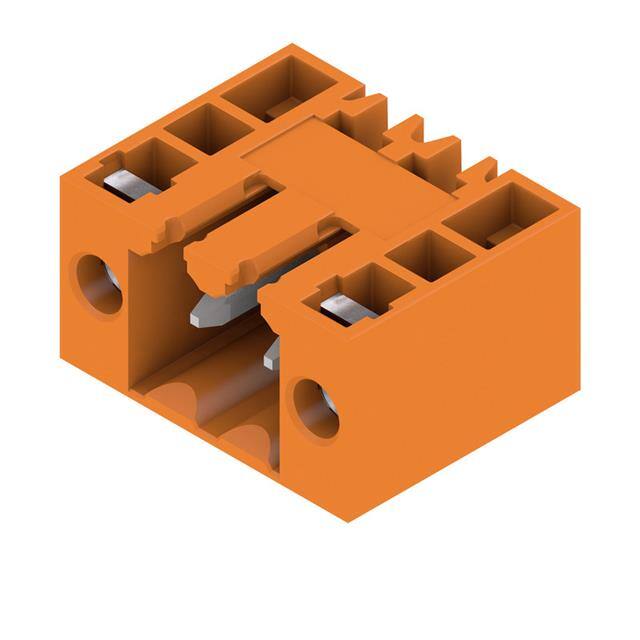

1607040000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Color :

Orange

JESD-609 Code :

e3

REACH SVHC :

No SVHC

Operating Temperature :

-50°C~100°C

Type :

Header, Male Pins, Shrouded (4 Side)

Width :

11.1mm

Mixed Contacts :

No

Series :

Omnimate SL

Pbfree Code :

yes

Option :

GENERAL PURPOSE

Hole Diameter :

1.3 mm

Number of Poles :

2

Contact Tail Length :

0.126 3.20mm

Ingress Protection :

IP10

Connector Type :

PCB, Terminal Block

Length :

13.5mm

Lead Free :

Lead Free

Height :

7.5mm

Current :

10A

Flammability Rating :

UL94 V-0

Current - IEC :

17A

Header Orientation :

90°, Right Angle

Number of Levels :

1

Current Rating :

10A

Mount :

Through Hole

Pitch :

0.138 3.50mm

DIN Conformance :

No

Filter Feature :

No

Termination Style :

Solder

Insulation Resistance :

1MOhm

IEC Conformance :

No

Insulation Height :

0.295 7.50mm

Approval Agency :

CSA, UR

Orientation :

RIGHT ANGLE

Mounting Type :

Through Hole

Gender :

Male

Radiation Hardening :

No

Material Flammability Rating :

UL94 V-0

Total Number of Contacts :

2

Housing Material :

Polybutylene Terephthalate (PBT)

Voltage :

300V

Contact Material :

COPPER ALLOY

Voltage - IEC :

320V

RoHS Status :

RoHS Compliant

UL Flammability Code :

94V-0

Factory Lead Time :

12 Weeks

Contact Mating Finish :

Tin

Feature :

Mating and Mounting Flange

MIL Conformance :

No

Number of Rows :

1

Packaging :

Bulk

Voltage - Rated :

300V

Published :

2008
