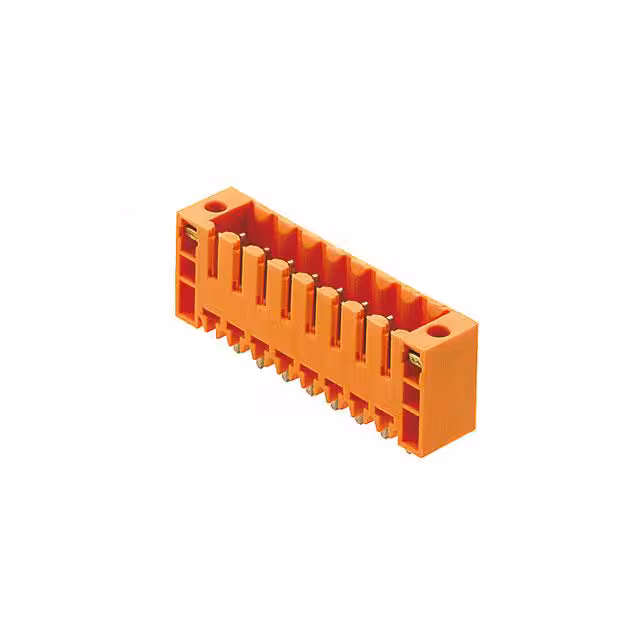

1607560000
Or copy the link below:
- Mfr.Part #
- 1607560000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 8POS VERT 3.5MM
- Stock
- 27
- In Stock ：
- 27
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- ECCN Code :
- EAR99
- Mounting Type :
- Through Hole
- Voltage - Rated :
- 300V
- Flammability Rating :
- UL94 V-0
- Number of Levels :
- 1
- Length :
- 35mm
- Radiation Hardening :
- No
- Pitch :
- 0.138 3.50mm
- Number of Decks :
- 1
- Operating Temperature :
- -50°C~100°C
- Approval Agency :
- CSA, UR
- Material Flammability Rating :
- UL94 V-0
- Insulation Resistance :
- 1MOhm
- Contact Tail Length :
- 0.126 3.20mm
- Max Current Rating :
- 10A
- Insulation Height :
- 0.437 11.10mm
- Factory Lead Time :
- 12 Weeks
- Series :
- Omnimate SL
- Hole Diameter :
- 1.3 mm
- Lead Free :
- Lead Free
- Termination Style :
- Solder
- Depth :
- 7.5mm
- Number of Ways :
- 8
- Published :
- 2008
- Voltage :
- 300V
- Feature :
- Mating and Mounting Flange
- Number of Rows :
- 1
- Current :
- 10A
- Contact Mating Finish :
- Tin
- Pbfree Code :
- yes
- Ingress Protection :
- IP10
- Contact Material :
- COPPER ALLOY
- Housing Material :
- Polybutylene Terephthalate (PBT)
- Type :
- Header, Male Pins, Shrouded (4 Side)
- REACH SVHC :
- No SVHC
- Mount :
- Through Hole
- Color :
- Orange
- Gender :
- Male
- Width :
- 7.5mm
- Voltage - IEC :
- 320V
- RoHS Status :
- RoHS Compliant
- Number of Poles :
- 8
- Orientation :
- Straight
- Header Orientation :
- Vertical
- Packaging :
- Bulk
- Current Rating :
- 14.5A
- Current - IEC :
- 17A
- Datasheets
- 1607560000
Bulk 0.138 3.50mm Orange 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Omnimate SL Polybutylene Terephthalate (PBT) Tin Copper Alloy
1607560000 Overview
This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Omnimate SL Series.Several benefits come from the Mating and Mounting Flange feature.There is a mounting hole at Through Hole.Devices operate at -50°C~100°C operating temperatures.There are many benefits that this part shares with other Header, Male Pins, Shrouded (4 Side) products as well.
1607560000 Features
Omnimate SL series
1607560000 Applications
There are a lot of Weidmüller
1607560000 Terminal Blocks applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
