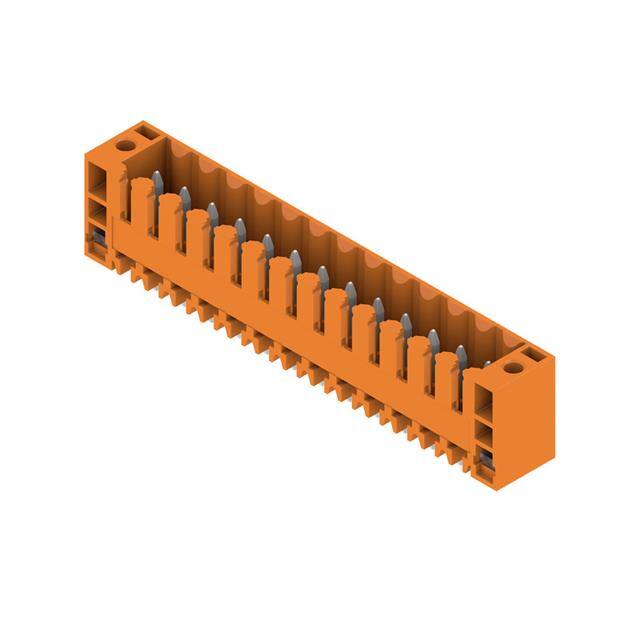

1607610000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Current - IEC :

17A

Termination Style :

Solder

Flammability Rating :

UL94 V-0

Approval Agency :

CSA, UR

Current Rating :

14.5A

Pbfree Code :

yes

Number of Levels :

1

Mounting Type :

Through Hole

Width :

7.5mm

Number of Rows :

1

Additional Feature :

High Density

UL Flammability Code :

94V-0

Type :

Header, Male Pins, Shrouded (4 Side)

IEC Conformance :

No

Current :

10A

Hole Diameter :

1.3 mm

Material Flammability Rating :

UL94 V-0

Housing Material :

Polybutylene Terephthalate (PBT)

Insulation Resistance :

1MOhm

Total Number of Contacts :

13

MIL Conformance :

No

Lead Free :

Lead Free

Mixed Contacts :

No

Filter Feature :

No

Option :

GENERAL PURPOSE

Published :

2008

Factory Lead Time :

12 Weeks

Number of Poles :

13

Radiation Hardening :

No

Operating Temperature :

-50°C~100°C

RoHS Status :

RoHS Compliant

DIN Conformance :

No

Contact Material :

COPPER ALLOY

Length :

61.2mm

Packaging :

Bulk

Pitch :

0.138 3.50mm

Insulation Height :

0.437 11.10mm

Ingress Protection :

IP10

Header Orientation :

Vertical

Mount :

Through Hole

Series :

Omnimate SL

Contact Tail Length :

0.126 3.20mm

Height :

11.1mm

Voltage :

300V

Color :

Orange

Voltage - Rated :

300V

Voltage - IEC :

320V

Feature :

Mating and Mounting Flange

JESD-609 Code :

e3

Contact Mating Finish :

Tin
