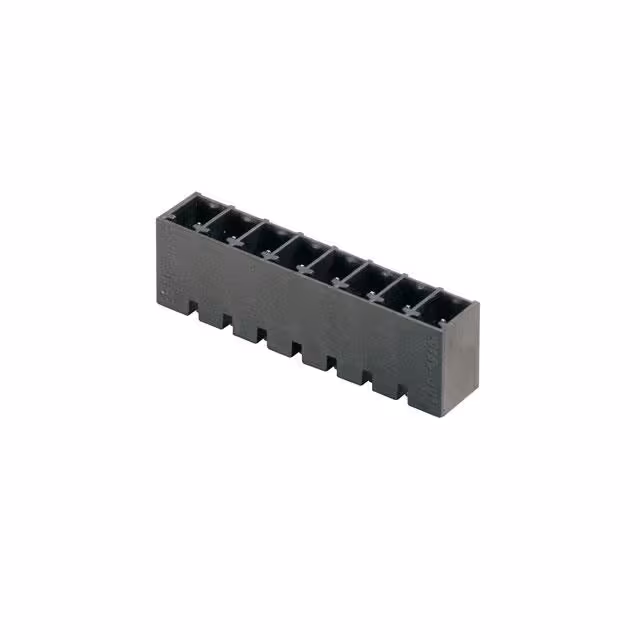

1611580000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Published :

2002

Screw Size :

M2.5

Flammability Rating :

UL94 V-0

Pbfree Code :

yes

Voltage :

300V

Number of Levels :

1

Wire Gauge (Max) :

26 AWG

Plug Wire Entry :

180°

Mount :

Cable, Free Hanging

Number of Contacts :

4

Insulation Resistance :

1MOhm

Radiation Hardening :

No

Factory Lead Time :

12 Weeks

Mixed Contacts :

No

Wire Gauge or Range - AWG :

12-26 AWG

Mounting Type :

Free Hanging (In-Line)

Orientation :

Straight

Type :

Plug, Male Pins

Torque - Screw :

0.4-0.5 Nm (3.5-4.4 Lb-In)

Wire Gauge (Min) :

12 AWG

Color :

Orange

Option :

GENERAL PURPOSE

Material Flammability Rating :

UL94 V-0

IEC Conformance :

No

Series :

Omnimate SL

Pitch :

0.200 5.08mm

Insulation Height :

0.480 12.20mm

Packaging :

Bulk

Contact Material :

COPPER ALLOY

RoHS Status :

RoHS Compliant

Height :

12.2mm

Filter Feature :

No

Housing Material :

Polybutylene Terephthalate (PBT)

Voltage - IEC :

250V

Wire Gauge or Range - mm² :

1.5mm2

Termination Style :

Screw - TOP Clamp

Lead Free :

Lead Free

Current - IEC :

12A

Width :

34.1mm

Wire Strip Length :

13mm

Operating Temperature :

-20°C~100°C

Contact Mating Finish :

Tin

MIL Conformance :

No

Number of Rows :

1

Current :

10A

DIN Conformance :

No

Termination :

Screw
