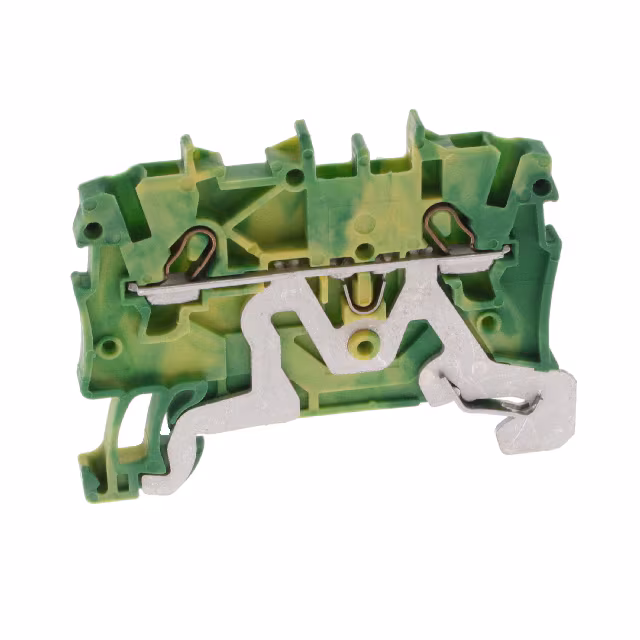

2000-1207

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Approvals :

CSA, UR

Wire Gauge or Range - AWG :

16-20 AWG

Packaging :

Box

Contact Pitch (mm) :

Not Required(mm)

Stripping length (max.) :

12mm

AWG max. :

16

Min. stripping length :

10mm

Stripping Length :

9mm ~ 11mm

Fuse Type :

-

Clamp width :

3.50mm

Base Product Number :

2000-120

Pins per row :

2

Connectable conductor cross section solid-core :

0.5 - 1.5

No. of rows :

1

RoHS :

yes

Features :

-

Nominal current - rounded value :

13.5A

Cross section (inflexible) (max.) :

1.50mm²

Height :

50.8

Wire Gauge or Range - mm² :

0.5-1.5mm²

Length :

48.5

Termination Style :

Push In, Spring

Product Status :

Active

Inflammability class of insulation material according to with UL94 :

V0

Pitch :

3.5mm

Number of Contact Rows :

2

Terminal - Width :

3.5mm

Cross section (flexible) (max.) :

1.50mm²

Width :

3.50mm

Housing Color :

Green/yellow

Housing Material :

Polyamide 6/6

Mounting Style :

T DIN RAIL

Type :

Grounding Block

Product Length (mm) :

48.5(mm)

AWG (min.) :

24

Color :

Green, Yellow

Nominal current :

13.5A

Number of Levels :

1

Disconnect Type :

-

Termination Method :

Clamp

Series :

2000

Connectable conductor cross section fine-strand without cable end sleeve :

0.14 - 1.5

Connectable conductor cross section fine-strand with cable end sleeve :

0.5 - 0.75

Cross section (flexible) (min.) :

0.14mm²

Product Depth (mm) :

3(mm)

Material Flammability Rating :

-

Rated Current :

18A

Voltage - UL :

-

Manufacturer :

Wago

Wire Gauge :

16-24(AWG)

Mounting Type :

DIN Rail

Number of Contacts :

2(POS)

Connectable conductor cross section multi-wired :

0.14 - 1

Voltage - IEC :

-

Cross section (inflexible) (min.) :

0.14mm²

Product Height (mm) :

33(mm)

Configuration :

Terre

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Number of Positions :

2

Rad Hardened :

No

Connection :

-

Number of Circuits :

1

Nominal current (details) :

13.5 A (18 A with flexible ladders)

Manufacturer part # :

2000-1207

Content :

1pc(s)

Rated Voltage :

800V

Package :

Bulk

Depth :

32.9
