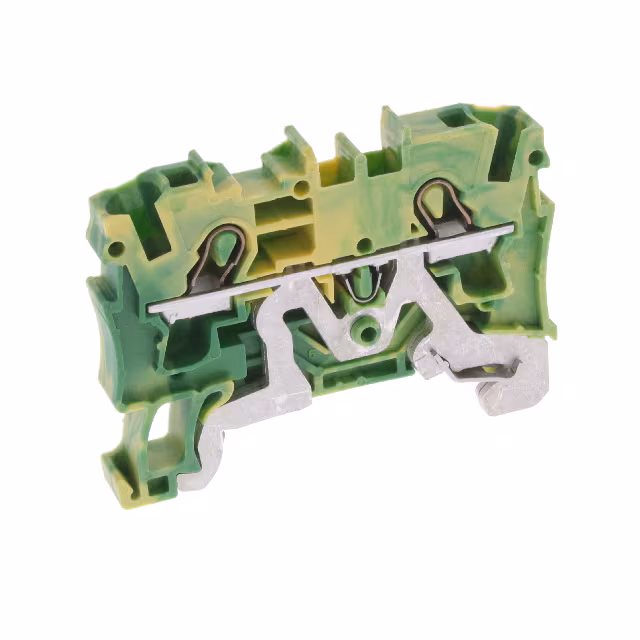

2004-1207

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Min. stripping length :

11mm

Connectable conductor cross section solid-core :

1 - 6

Termination Style :

Push In, Spring

Product Status :

Active

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Packaging :

Box

Mounting Type :

DIN Rail

Terminal - Width :

6.2mm

Width :

6.20mm

Manufacturer :

Wago

Product Length (mm) :

52.3(mm)

Gender :

F

Number of Positions :

2

Product Depth (mm) :

6.2(mm)

Housing Color :

Green/yellow

Color :

Green, Yellow

Number of Levels :

1

Number of Contact Rows :

2

Nominal current - rounded value :

32A

Cross section (inflexible) (max.) :

4mm²

Wire Gauge :

10-20(AWG)

Material Flammability Rating :

-

Fuse Type :

-

Features :

-

Content :

1pc(s)

Weight :

0.01

Voltage Rating :

800 V

Voltage - UL :

-

Wire Gauge or Range - mm² :

1.5-6mm²

Base Product Number :

2004-12

Voltage - IEC :

-

Type :

Grounding Block

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 6

AWG max. :

10

Wire Gauge or Range - AWG :

10-14 AWG

Disconnect Type :

-

Height :

52.3

Connectable conductor cross section multi-wired :

0.5 - 4

Clamp width :

6.20mm

Current Rating (Max) :

30(A)

Length :

52.5

Housing Material :

Polyamide 6/6

Termination Method :

Spring Clamp

Pins per row :

2

Cross section (flexible) (min.) :

0.50mm²

Stripping length (max.) :

13mm

Configuration :

Terre

Cross section (inflexible) (min.) :

0.50mm²

Depth :

32.9

No. of rows :

1

Number of Contacts :

2(POS)

Nominal current :

32A

Rated Current :

32A

Stripping Length :

11mm ~ 13mm

Product Height (mm) :

33(mm)

RoHS :

yes

Series :

2004

Rad Hardened :

No

Current Rating :

32A

Operating Voltage (Max) :

600V

Rated Voltage :

800V

Connection :

-

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 4

Package :

Bulk

Inflammability class of insulation material according to with UL94 :

V0

AWG (min.) :

20

Manufacturer part # :

2004-1207

Cross section (flexible) (max.) :

6mm²

Nominal current (details) :

32A

Mounting Style :

T DIN RAIL
