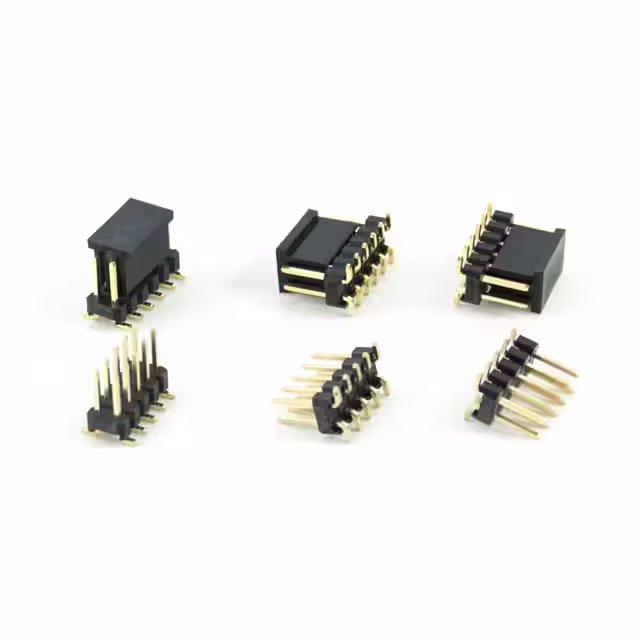

2015-2X03G01DB
Or copy the link below:
- Mfr.Part #
- 2015-2X03G01DB
- Manufacturer
- Oupiin
- Package / Case
- Datasheet
- Download
- Description
- PIN HEADER, DOUBLE ROW, 6 PIN, S
- Stock
- 48,512
- In Stock ：
- 48,512
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Oupiin
- Product Category :
- Headers, Male Pins
- Package :
- Bulk
- Material Flammability Rating :
- UL94 V-0
- Style :
- Board to Board
- Contact Shape :
- Square
- Termination :
- Solder
- Base Product Number :
- 2015
- Voltage Rating :
- -
- Insulation Material :
- Plastic
- Insulation Height :
- 0.098 (2.50mm)
- Connector Type :
- Header
- Contact Material :
- COPPER ALLOY
- Contact Finish Thickness - Mating :
- -
- Product Status :
- Active
- Pitch - Mating :
- 0.100 (2.54mm)
- Fastening Type :
- Push-Pull
- Contact Finish Thickness - Post :
- -
- Overall Contact Length :
- -
- Operating Temperature :
- -40°C ~ 105°C
- Series :
- 2015
- Contact Type :
- Male Pin
- Shrouding :
- Unshrouded
- Number of Positions :
- 6
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Contact Length - Post :
- -
- Mated Stacking Heights :
- -
- Insulation Color :
- -
- Applications :
- -
- Number of Positions Loaded :
- All
- Mounting Type :
- Surface Mount
- Current Rating (Amps) :
- 2A
- Contact Finish - Mating :
- Gold
- Contact Length - Mating :
- 0.244 (6.20mm)
- Features :
- -
- Contact Finish - Post :
- Gold
- Number of Rows :
- 2
- Ingress Protection :
- -
- Datasheets
- 2015-2X03G01DB
2015 Series 2-Row Header Solder Copper Alloy Surface Mount Gold Plastic 6-Position Board to Board 0.098 (2.50mm) Height
2015-2X03G01DB Overview
This product is packaged in a Header box.Surface Mount indicates that the device is mounted.The product is a part of the 2015 Series.There is the possibility of using the device for -.Operating temperature is set to -40°C ~ 105°C.
2015-2X03G01DB Features
2015 series
2015-2X03G01DB Applications
There are a lot of Oupiin
2015-2X03G01DB Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
