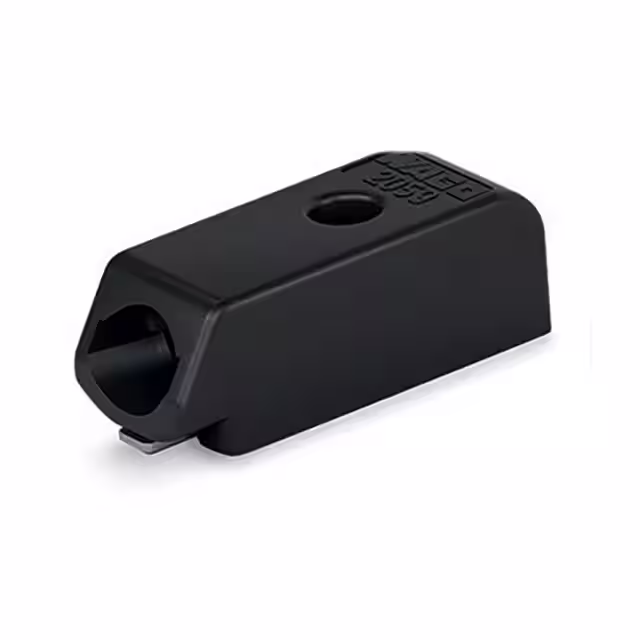

2059-321/998-403

Manufacturer :

WAGO

Product Category :

Wire to Board

Rated Current :

3A

Automotive :

No

Wire Gauge :

22-26 AWG

Mounting Type :

PCB Mount

Torque - Screw :

-

Contact Material - Plating :

Copper Alloy - Tin Plated

Number of Poles :

1

Voltage :

600 V

Pitch :

-

HTS :

8536.90.40.00

Current :

3 A

Approvals :

cURus

RoHS :

yes

Series :

-

PPAP :

No

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Features :

-

Connection Type :

Spring Clamp

Clamp Material - Plating :

-

EU RoHS :

Compliant

Rated Voltage :

320V

Number of Levels :

1

Positions Per Level :

1

Operating Temperature :

-60°C ~ 105°C

Composition :

Polyphthalamide

Wire Termination :

Screwless - Leg Spring, Push-In Spring

ECCN (US) :

EAR99

Product Status :

Active

Screw Material - Plating :

-

Temperature Range :

-76 to 221 Degrees F

Mating Orientation :

Horizontal with Board

Housing Material :

Polyphthalamide (PPA), Glass Filled

Manufacturer :

Wago

Screw Thread :

-

Color :

Black
