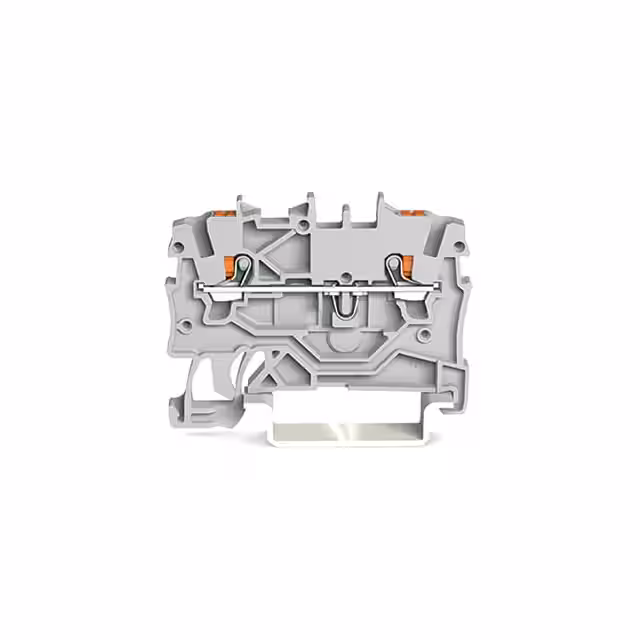

2200-1201

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Voltage - UL :

600V

Cross section (inflexible) (max.) :

1.50mm²

Number of Circuits :

1

Industrial packaging :

yes

Approvals :

CSA, cURus

Number of Ways :

2

Content :

100pc(s)

Min. stripping length :

9mm

Wire Gauge or Range - mm² :

0.14-1.5mm²

Product Status :

Active

Clamp width :

3.50mm

Stripping length (max.) :

11mm

Cross section (inflexible) (min.) :

0.14mm²

Manufacturer :

Wago

Height :

32.90mm

Wire Size :

24 → 16 AWG

Type :

WAGO GmbH and Co. KG

Current - IEC :

17.5 A

Number of Levels :

1

Terminal - Width :

3.5mm

AWG max. :

16

No. of rows :

1

Disconnect Type :

-

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Termination Style :

Push In, Spring

Package :

Box

Number of Positions :

2

Dim :

(L x W x H) 48.50 x 3.50 x 32.90 mm

Termination Method :

Push In

Nominal voltage :

800V

RoHS :

yes

Current Rating :

13.5A

Length :

48.50mm

Nominal current :

13.50A

Series :

2200

Voltage - IEC :

800V

Pins per row :

2

Stripping Length :

9mm ~ 11mm

Cross section (flexible) (max.) :

1mm²

AWG (min.) :

24

Features :

+ latchkey,+ CAGE CLAMP®

Connection :

Push-in connector

Width :

3.50mm

Current - UL :

10 A

Color :

Gray

Mounting Type :

DIN Rail

Fuse Type :

-

Rated Voltage :

800V

Material Flammability Rating :

UL94 V-0

Manufacturer part # :

2200-1201

Nominal current - rounded value :

13.5A

Cross section (flexible) (min.) :

0.14mm²

Wire Gauge or Range - AWG :

16-24 AWG

Rated Current :

13.5A
