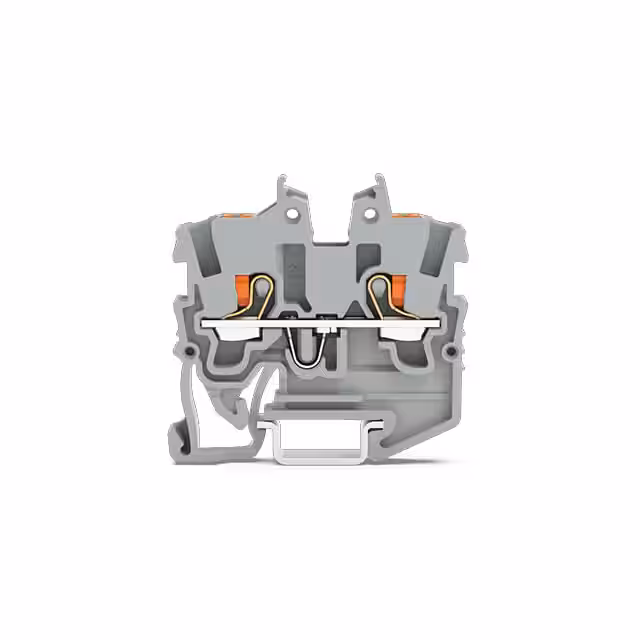

2250-1201

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Connectable conductor cross section solid-core :

0.14 - 1.5

Rated Current :

13.5A

Rated current In :

13.5

Wire Gauge or Range - mm² :

0.14-1.5mm²

Connectable conductor cross section fine-strand with cable end sleeve :

0.5 - 0.75

Manufacturer :

Wago

Type :

Feedthrough Block

Connectable conductor cross section multi-wired :

0.14 - 1

Approvals :

CSA, UL

Color :

Gray

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Number of Positions :

2

Disconnect Type :

-

Stripping Length :

9mm ~ 11mm

Length :

34

RoHS :

No

Series :

TOPJOB®S

Mounting Type :

DIN Rail

Package :

Box

Termination Style :

Push In, Spring

Voltage - IEC :

500V

Current - IEC :

17.5 A

Number of Levels :

1

Fuse Type :

-

Depth :

27.9

Connectable conductor cross section fine-strand without cable end sleeve :

0.14 - 1.5

Current - UL :

10 A

Voltage - UL :

300V

Features :

-

Width :

3.5

Material Flammability Rating :

UL94 V-0

Product Status :

Active

Height :

34.1

Inflammability class of insulation material according to with UL94 :

V0

Terminal - Width :

3.5mm

Wire Gauge or Range - AWG :

16-24 AWG

Rated Voltage :

500V
