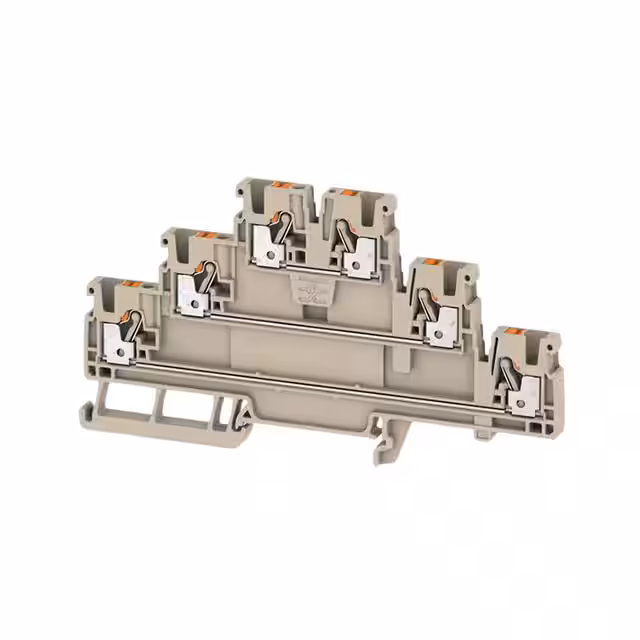

2428510000

Manufacturer :

Weidmuller

Product Category :

Din Rail, Channel

Type :

Feed Through Terminal Block

Housing Material :

Thermoplastic (TP)

Nominal voltage :

800V

Depth :

64.5

Length :

64.5 mm

RoHS-compliant :

yes

Minimum Operating Temperature :

- 60 C

Color :

Beige

Pins per row :

2

RoHS :

Details

AWG max. :

12

Inflammability class of insulation material according to with UL94 :

V0

Cross section (inflexible) (min.) :

0.14mm²

Connectable conductor cross section fine-strand with cable end sleeve :

0.5 - 2.5

Content :

50pc(s)

Industrial packaging :

yes

AWG (min.) :

28

Series :

A3T

Connectable conductor cross section multi-wired :

0.5 - 2.5

Flammability Rating :

UL 94 V-0

Manufacturer part # :

2428510000

Height :

116 mm

Rated Current :

22A

Maximum Operating Temperature :

+ 130 C

Current Rating :

22 A

Stripping length (max.) :

10mm

Clamp width :

5.1mm

Connectable conductor cross section solid-core :

0.5 - 2.5

Cross section (inflexible) (max.) :

2.5mm²

Number of Positions :

6 Position

Cross section (flexible) (max.) :

2.5mm²

Nominal current :

22A

Mounting Style :

DIN Rail

No. of rows :

3

Cross section (flexible) (min.) :

0.14mm²

Width :

5.1 mm

Packaging :

Bulk

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 2.5

Connection :

Pull spring

Connection Method :

Push-In

Nominal current - rounded value :

22A

Voltage Rating :

800 V

Rated Voltage :

800V

Rated current In :

22
