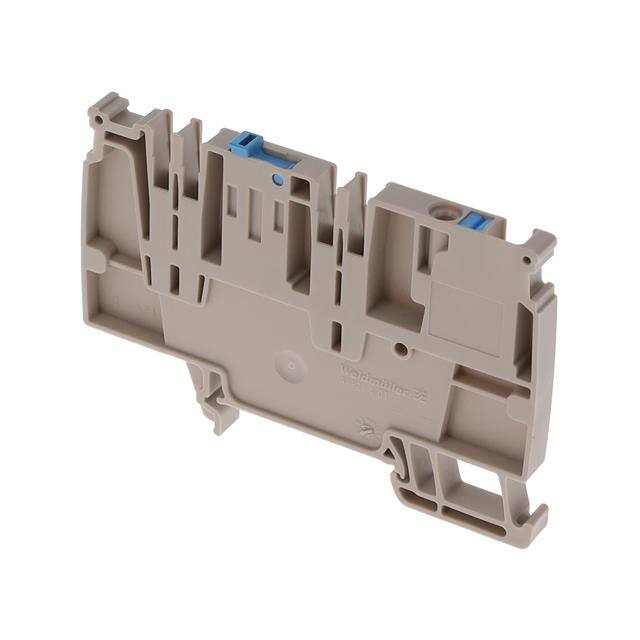

2428980000

Manufacturer :

Weidmuller

Product Category :

Din Rail, Channel

Type :

AAP21 4 DT

Nominal current - rounded value :

20A

Nominal voltage :

250V

Product Type :

DIN Rail Terminal Blocks

Connectable conductor cross section multi-wired :

0.5 - 4

Connectable conductor cross section solid-core :

0.5 - 4

Connectable conductor cross section fine-strand with cable end sleeve :

0.5 - 4

Cross section (flexible) (min.) :

0.5mm²

Height :

82mm

Width :

6.10mm

Manufacturer part # :

2428980000

AWG (min.) :

26

Cross section (inflexible) (max.) :

4mm²

Nominal current :

20A

Content :

50pc(s)

Length :

53.50mm

Rated current In :

20

Inflammability class of insulation material according to with UL94 :

V0

Industrial packaging :

yes

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 4

Cross section (flexible) (max.) :

4mm²

Cross section (inflexible) (min.) :

0.5mm²

Connection :

Pull spring

AWG max. :

12

Depth :

55

Subcategory :

Terminal Blocks

Clamp width :

6.10mm

Stripping length (max.) :

12mm
