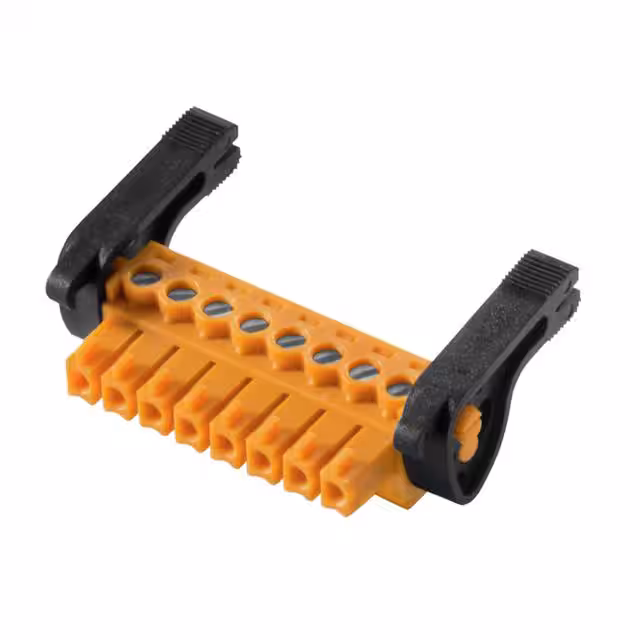

2442340000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Industrial packaging :

yes

Min. cross section :

0.20mm²

Series :

BC/SC

Degree of protection (IP), mounted :

IP20

Connectable conductor cross section solid-core :

0.2 - 1.5

Material housing :

Plastic

No. of rows :

1

Rated current In :

17

Over voltage category :

III

Pins per row :

7

Connectable conductor cross section fine-strand with cable end sleeve :

0.2 - 1.5

Total number of pins :

7

Manufacturer :

Weidmuller

Product Category :

Pluggable Terminal Blocks

AWG (min.) :

28

Manufacturer part # :

2442340000

Max. temperature :

+120°C

Subcategory :

Terminal Blocks

Connectable conductor cross section fine-strand without cable end sleeve :

0.2 - 1.5

Min. temperature :

-50°C

Inflammability class of insulation material according to with UL94 :

V0

CS :

3.81mm

AWG max. :

16

Pollution degree :

2

Nominal current - rounded value :

17.5A

Product Type :

Pluggable Terminal Blocks

max. cross section :

1.50mm²

Nominal current :

17.50A

Content :

50pc(s)

Material of contact surface :

Tin

Brand :

Weidmuller

Nominal voltage :

320V

Material contact :

Copper

Type :

BCZ 3.81/07/180LR SN OR BX

Rated surge voltage :

2.5

Case material :

PA GF

Features :

encodable

RoHS-compliant :

yes

Type of electric connection :

Screw connection

Connection :

Pull spring

Stripping length (max.) :

7mm
