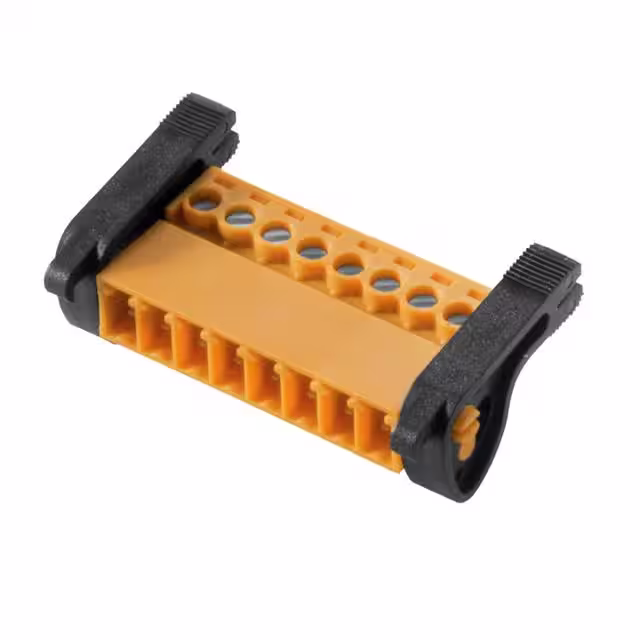

2444100000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Pollution degree :

2

Pitch :

2.54 mm

Termination :

Solder

Connectable conductor cross section fine-strand without cable end sleeve :

0.2 - 1.5

Total number of pins :

5

Material housing :

Plastic

Subcategory :

Terminal Blocks

Product Category :

Pluggable Terminal Blocks

Brand :

Weidmuller

Number of Contacts :

128

Mount :

Through Hole

Degree of protection (IP), mounted :

IP20

Rated surge voltage :

2.5

Max. temperature :

+120°C

Inflammability class of insulation material according to with UL94 :

V0

Min. temperature :

-50°C

AWG (min.) :

28

Pins per row :

5

Features :

encodable

Material contact :

Copper

Min. cross section :

0.20mm²

Gender :

FEMALE

Series :

BC/SC

Connectable conductor cross section fine-strand with cable end sleeve :

0.2 - 1.5

Nominal current :

17.50A

Nominal current - rounded value :

17.5A

Content :

50pc(s)

Manufacturer :

Weidmuller

Rated current In :

17.5

Orientation :

Straight

No. of rows :

1

Type :

SCZ 3.81/05/180LR SN OR BX

Product Type :

Pluggable Terminal Blocks

CS :

3.81mm

RoHS :

Compliant

Nominal voltage :

320V

Connectable conductor cross section solid-core :

0.2 - 1.5

Type of electric connection :

Screw connection

AWG max. :

16

Industrial packaging :

yes

Manufacturer part # :

2444100000

RoHS-compliant :

yes

Stripping length (max.) :

7mm

Packaging :

Bulk

Radiation Hardening :

No

max. cross section :

1.50mm²

Over voltage category :

III

Connection :

Pull spring

Material of contact surface :

Tin

Case material :

PA GF
