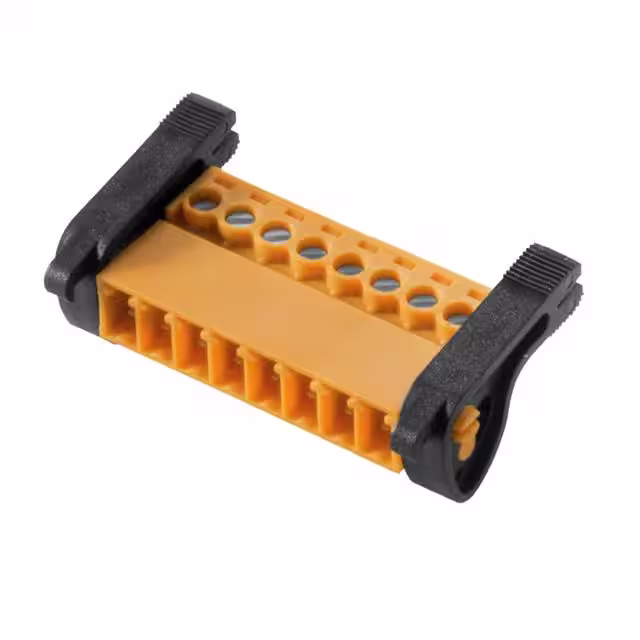

2444130000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Contact Plating :

Lead, Tin

Orientation :

RIGHT ANGLE

Voltage :

300 V

Material contact :

Copper

Packaging :

Bulk

Pitch :

5 mm

Max Operating Temperature :

105 °C

Housing Color :

Black

Max Current Rating :

15 A

Connectable conductor cross section solid-core :

0.2 - 1.5

Product Category :

Pluggable Terminal Blocks

Rated current In :

17.5

Rated surge voltage :

2.5

Current :

15 A

Manufacturer :

Weidmuller

Brand :

Weidmuller

Number of Rows :

1

Type of electric connection :

Screw connection

Contact Material :

Brass

Color :

Black

Min Operating Temperature :

-40 °C

Degree of protection (IP), mounted :

IP20

RoHS :

Compliant

Radiation Hardening :

No

Connectable conductor cross section fine-strand without cable end sleeve :

0.2 - 1.5

Number of Contacts :

10

Length :

51.82 mm

Connectable conductor cross section fine-strand with cable end sleeve :

0.2 - 1.5

Housing Material :

Nylon

Termination :

Solder

Number of Positions Per Level :

10

Gender :

Male

Depth :

12.06 mm

Material of contact surface :

Tin

Over voltage category :

III

Material housing :

Plastic

Subcategory :

Terminal Blocks

Pollution degree :

2

Mount :

Through Hole

Product Type :

Pluggable Terminal Blocks

Number of Levels :

1

Inflammability class of insulation material according to with UL94 :

V0
