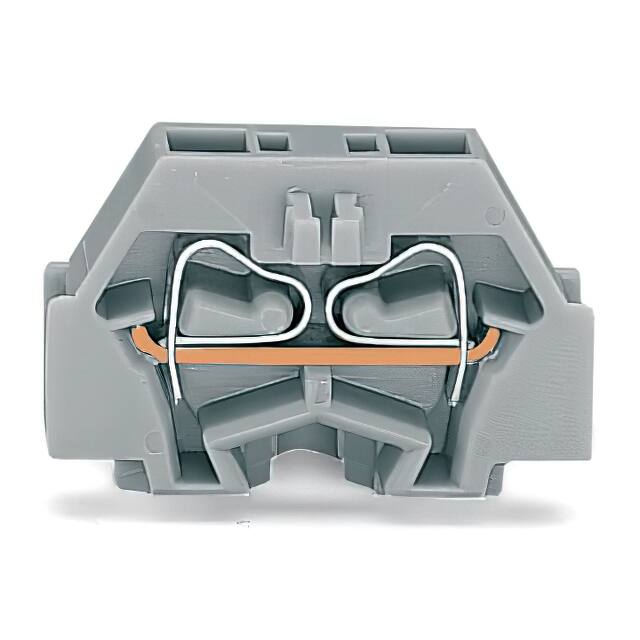

260-321

Manufacturer :

WAGO

Product Category :

Specialized

Housing Color :

Gray

Terminal - Width :

5.0mm

Number of Rows :

1

Wire Gauge or Range - AWG :

16-28 AWG

Dim :

(W x H) 5 mm x 17 mm

Automotive :

No

Height :

17mm

Stripping length (max.) :

9mm

HTS :

8536.90.40.00

Cross section (flexible) (max.) :

1.50mm²

Configuration :

L

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 1.5

Number of Circuits :

1

Number of Positions :

2

Maximum Operating Temperature (°C) :

105

Min. stripping length :

8mm

RoHS :

yes

Features :

+ latch lock base

Nominal voltage :

400V

Nominal current :

18A

Cross section (inflexible) (min.) :

0.08mm²

ECCN (US) :

EAR99

Operating Temperature :

-

Type :

Terminal Strip

Transparent :

No

Color :

Gray

No. of rows :

1

AWG max. :

16

Connectable conductor cross section solid-core :

0.08 - 1.5

Connectable conductor cross section multi-wired :

0.08 - 1.5

Width :

5mm

Number of Contacts :

2

Mounting Type :

Flange, Snap-In

Pins per row :

2

Termination Style :

Push In, Spring

Manufacturer part # :

260-321

EU RoHS :

Compliant

Connection :

Pull spring

Depth :

17.1

Minimum Operating Temperature (°C) :

-60

Clamp width :

5mm

Termination Method :

Clamp

AWG (min.) :

28

Wire Gauge or Range - mm² :

0.08-1.5mm²

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Height (Max) :

0.673 (17.09mm)

Current - IEC :

18 A

Number of Levels :

1

Contamination level :

3

Maximum Voltage Rating :

400V

Voltage - IEC :

400 V

Maximum Current Rating (A) :

18

Manufacturer :

Wago

Rated current In :

18

Stripping Length :

8mm ~ 9mm

Cross section (inflexible) (max.) :

1.50mm²

Package :

Box

PPAP :

No

Cross section (flexible) (min.) :

0.08mm²

Material Flammability Rating :

UL94 V-0

Tradename :

CAGE CLAMP?

Product Status :

Active

Series :

-

Length :

25

Inflammability class of insulation material according to with UL94 :

V0

Mounting :

Snap-in Foot

Industrial packaging :

yes

Nominal current - rounded value :

18A

Content :

300pc(s)
