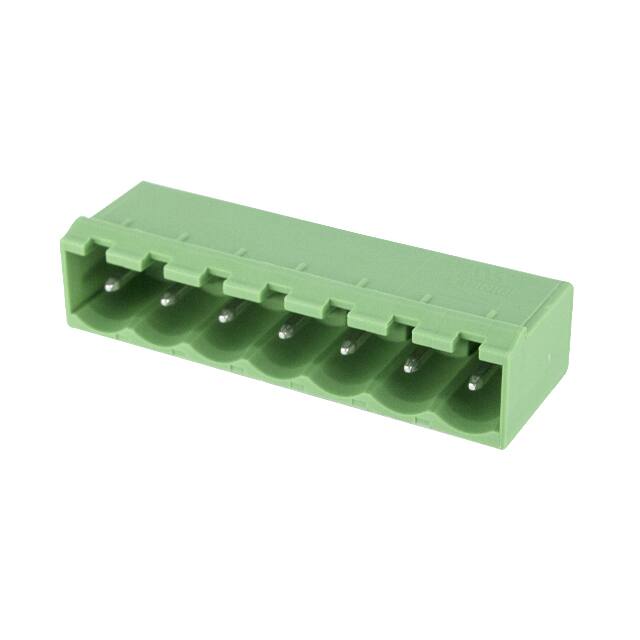

2EHDRC-07P

Manufacturer :

DINKLE Corporation USA

Product Category :

Headers, Plugs and Sockets

Number of Positions :

7

Type :

AGS71

Reach Compliance Code :

Compliant

Pbfree Code :

yes

Rated Voltage :

300 V

Color :

Green

Number of Rows :

1

Package :

Bulk

Fastening Method :

Connector

Positions Per Level :

7

Number of Levels :

1

Connection :

Cable Clamps

Wire Gauge or Range - mm² :

-

Manufacturer :

Dinkle Enterprises

Pitch :

0.200 (5.08mm)

Plug Wire Entry :

-

Contact Mating Finish :

Tin

Header Orientation :

90°, Right Angle

Voltage - UL :

300 V

Number of Decks :

1

Wire Gauge or Range - AWG :

-

Terminal and Terminal Block Type :

STRIP TERMINAL BLOCK

Features :

-

Safety Approval :

CSA; CUL; UL; VDE

ECCN Code :

EAR99

Mounting Type :

Through Hole

Number of Ways :

7

Current - IEC :

18A

Voltage - IEC :

630 V

Rated Current :

15 A

Operating Temperature :

-40°C ~ 120°C

Current - UL :

15 A

Series :

2EHDRC

Termination Style :

Solder

Content :

2pc(s)

Product Status :

Active

HTS Code :

8536.69.40.40

Manufacturer part # :

AGS71
