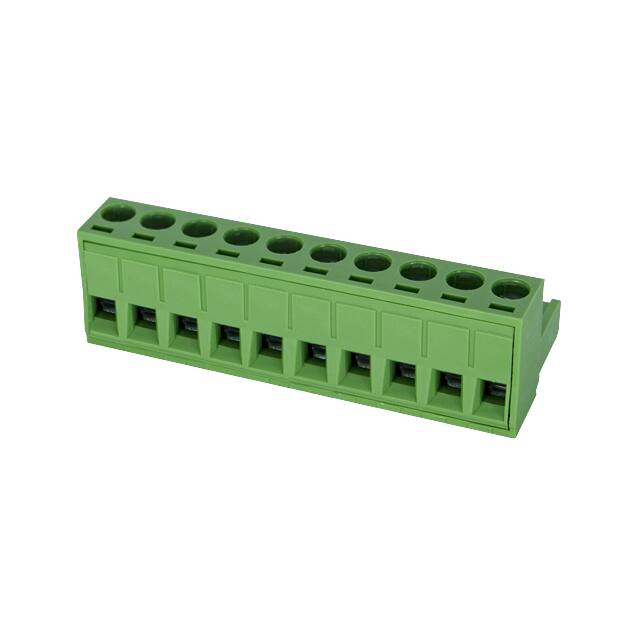

2ESDV-10P

Manufacturer :

DINKLE Corporation USA

Product Category :

Headers, Plugs and Sockets

Header Orientation :

-

Voltage - UL :

300 V

Number of Positions :

10

Terminal and Terminal Block Type :

BARRIER STRIP TERMINAL BLOCK

Pbfree Code :

yes

Rated Voltage :

300 V

Wire Gauge or Range - AWG :

12-30 AWG

RoHS :

Non-Compliant

Manufacturer :

Dinkle Enterprises

Number of Poles :

10

Package :

Bulk

Packaging :

Bag-packed

Type :

PLUG

Mounting Type :

Free Hanging (In-Line)

Plug Wire Entry :

180°

Series :

2ESDV

Package / Case :

P=5.08mm

Current - IEC :

18A

Number of Rows :

1

Operating Temperature :

-40°C ~ 120°C

Fastening Method :

Screw

Safety Approval :

CSA; CUL; FIMKO; UL; VDE

ECCN Code :

EAR99

Contact Mating Finish :

Tin

Current - UL :

15 A

Termination Style :

Screw - Rising Cage Clamp

Positions Per Level :

10

Number of Ways :

10

Pitch :

0.200" 5.08mm

Number of Decks :

1

HTS Code :

8536.69.40.40

Voltage - IEC :

600 V

Features :

-

Wire Gauge or Range - mm² :

0.2-2.5mm²

Reach Compliance Code :

Compliant

Wire Gauge :

12 AWG

Product Status :

Active

RoHS Status :

RoHS Compliant

Color :

Green

Number of Levels :

1

Rated Current :

15 A

Wire Cross Section :

2.5 mm2
