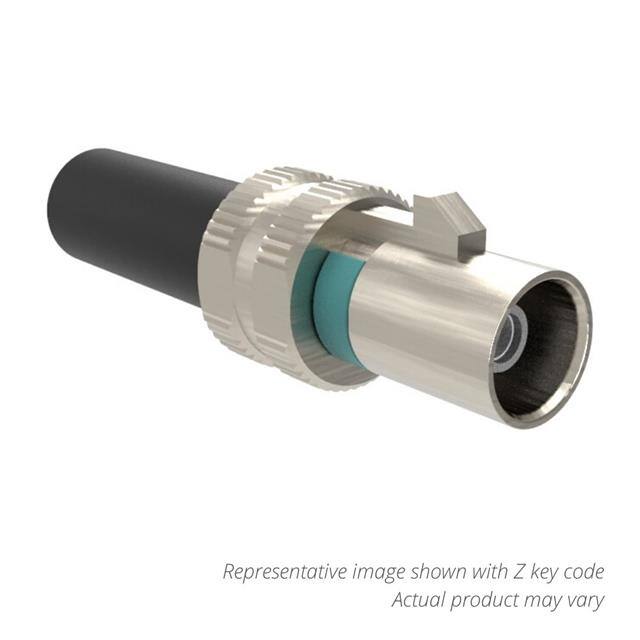

2FA1-NDSP-C01E1

Manufacturer :

Amphenol RF

Product Category :

Coaxial Connector (RF) Assemblies

Shield Termination :

Solder

Product :

PCB Connectors

Product Status :

Active

Product Type :

RF Connectors / Coaxial Connectors

Cable Group :

-

Number of Ports :

1

Mounting Style :

Through Hole

Harmonized Code :

8536.69.4010

Manufacturer :

Amphenol

Brand :

Amphenol RF

Minimum Operating Temperature :

- 40 C

Base Product Number :

2FA1

RF Series :

FAKRA

Itar Registered :

Unavailable

ECCN :

EAR99

Insertion Loss :

-

Contact Termination :

Crimp

Mounting Type :

Through Hole, Right Angle

Connector Style :

SMB, Fakra

IP Rating :

IP67

Operating Temperature :

-40°C ~ 105°C

Mating Cycles :

100

Body Style :

Straight

Operating Temperature Range :

- 40 C to + 105 C

Body Material :

Zinc Die Cast

Features :

Code D

Mounting Feature :

-

Center Contact Material :

Brass

Impedance :

50 Ohms

Body Finish :

MATTE TIN

Dielectric Material :

Polytetrafluoroethylene (PTFE)

Subcategory :

RF Interconnects

Termination Style :

Crimp

Frequency - Max :

3 GHz

Maximum Operating Temperature :

+ 105 C

Ingress Protection :

-

Includes :

-

Isolation :

Non-Isolated

Packaging :

Tray

Product Category :

RF Connectors / Coaxial Connectors

Tradename :

FAKRA

Connector Type :

Plug, Male Pin

Center Contact Plating :

Gold

Gender :

Plug (Pin)

Fastening Type :

Locking Ramp

Housing Color :

Violet, Claret

Orientation :

Straight
