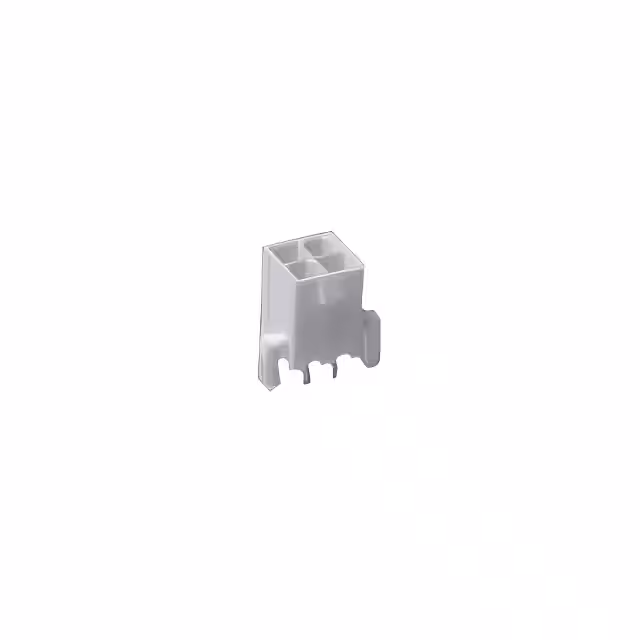

39-33-3026

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Total Number of Contacts :

2

Contact Plating :

Copper, Tin

Connector Type :

RECTANGULAR POWER CONNECTOR

Row Spacing :

5.5 mm

Operating Temp Range :

-40C to 105C

Contact Resistance :

10 MΩ

Mount :

Through Hole

Termination :

Solder

Termination Type :

Solder

Housing Color :

Natural

Pitch (mm) :

4.2(mm)

Number of Positions :

2

Product Length (mm) :

27.4(mm)

Mixed Contacts :

No

Max Voltage Rating (DC) :

600.6 kV

Min Operating Temperature :

-40 °C

Housing Material :

Nylon

Max Operating Temperature :

105 °C

Termination Method :

Solder

Number of Rows :

2

Mounting Style :

Through Hole

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Reach Compliance Code :

Compliant

Voltage Rating :

600 V

Manufacturer :

Molex

Number of Contacts :

2

Empty Shell :

No

Filter Feature :

No

Option :

GENERAL PURPOSE

Mounting Type :

BOARD

MIL Conformance :

No

Voltage Rating Max :

600V

Series :

*

Pbfree Code :

yes

Shell Material :

POLYAMIDE66

RoHS :

Compliant

Product Status :

Active

Contact Material :

Brass

Orientation :

Straight

Product Depth (mm) :

3.6(mm)

UL Flammability Code :

94V-2

Gender :

Male

IEC Conformance :

No

Pitch :

4.2 mm

Current Rating (Max) :

9/Contact(A)

Type :

Wire to Board

Body Orientation :

Straight

Product Height (mm) :

3.5(mm)

Package :

Bulk

Packaging :

Bulk

Number of Contact Rows :

2

Contact Gender :

Male

Contact Resistance Max :

10(mohm)

DIN Conformance :

No
