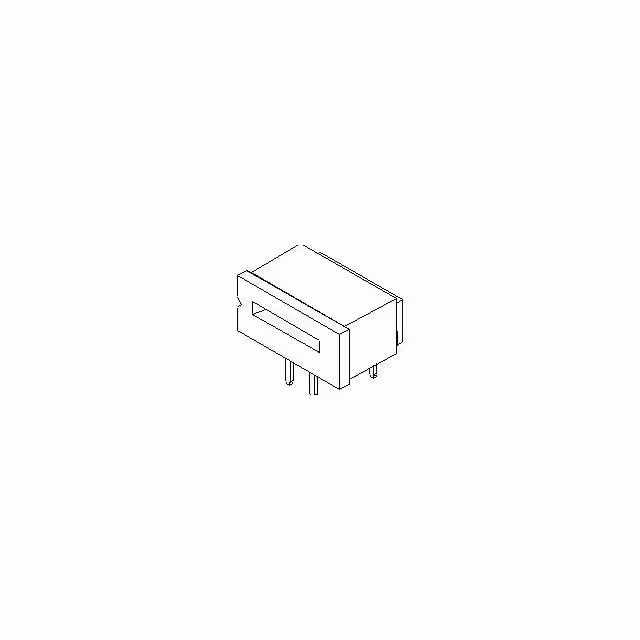

39-53-2224

Manufacturer :

Molex

Product Category :

FFC, FPC (Flat Flexible) Connector Assemblies

Option :

GENERAL PURPOSE

Maximum Operating Temperature :

+80°C

Minimum Operating Temperature :

-20°C

Total Number of Contacts :

22

HTS Code :

8536.69.40.51

PCB Contact Pattern :

STAGGERED

Product Length (mm) :

33.25(mm)

Terminal Length :

0.138 inch

Mounting Type :

Through Hole

Body Depth :

0.386 inch

Flammability Rating :

UL 94 V-0

Body Breadth :

0.213 inch

Contact Gender :

SKT

Mating Contact Pitch :

0.049 inch

Wire/Cable Type :

FFC/FPC

Terminal Pitch :

1.25 mm

Subcategory :

FFC and FPC Connectors

Actuator Type :

Slider

Pitch (mm) :

1.25(mm)

Packaging :

Tray

Number of Contacts :

22(POS)

Manufacturer :

Molex

Number of Rows :

1

Gender :

FEMALE

Voltage Rating :

200 V

Current Rating (Max) :

1/Contact(A)

Contact Plating :

TIN BISMUTH OVER NICKEL

Withdrawl Force-Min :

ZIF N

Voltage Rating Max :

200V

DIN Conformance :

No

Additional Feature :

ROHS COMPLIANT, TRAY PACKAGING

Number of Contact Rows :

1

Current Rating :

1A

Connector Type :

FFC/FPC CONNECTOR

Termination Method :

Solder

Product Category :

FFC and FPC Connectors

Package :

Box

Product Type :

FFC and FPC Connectors

Mounting Style :

Through Hole

Contact Style :

BELLOWED TYPE

Mounting Option 1 :

LOCKING

Housing Color :

Natural

Number of Positions :

22 Position

Contact Location :

Top Contact

IEC Conformance :

No

Product Status :

Active

Filter Feature :

No

RoHS :

Details

Contact Material :

Phosphor Bronze

Mounting Angle :

RIGHT ANGLE

Termination Style :

Through Hole

Pitch :

1.25mm

Contact Resistance Max :

20(mohm)

ECCN Code :

EAR99

Housing Material :

PBT

UL Flammability Code :

94V-0

Operating Temp Range :

-20C to 80C

Product :

Board Mount

Contact Pattern :

RECTANGULAR

Termination Type :

ZIF Top Contact

Body Orientation :

RIGHT ANGLE

Product Height (mm) :

5.4(mm)

Reach Compliance Code :

Compliant

Series :

*

Product Depth (mm) :

9.8(mm)

Brand :

Molex

Number Of PCB Rows :

2

Accessory Type :

-

Mixed Contacts :

No

Insertion Force-Max :

ZIF N

MIL Conformance :

No

Orientation :

RIGHT ANGLE

Type :

FPC Connector

Pbfree Code :

yes

Reliability :

COMMERCIAL

PCB Contact Row Spacing :

5.0038 mm
