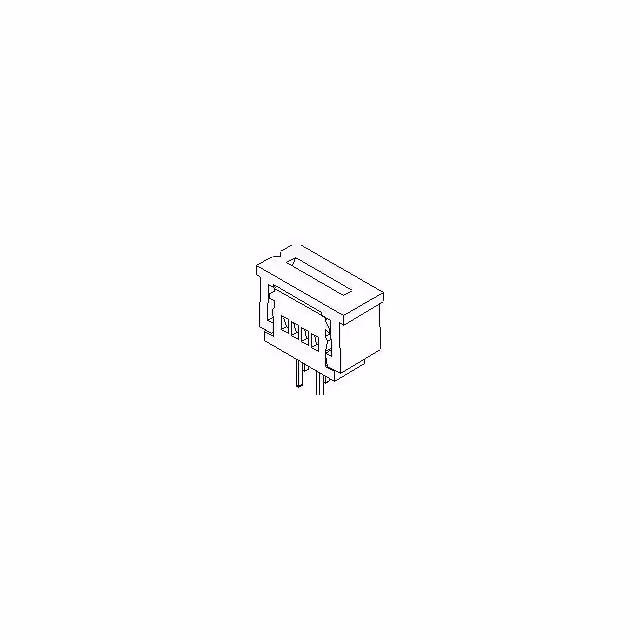

39-53-2225

Manufacturer :

Molex

Product Category :

FFC, FPC (Flat Flexible) Connector Assemblies

UL Flammability Code :

94V-0

Contact Style :

BELLOWED TYPE

DIN Conformance :

No

Actuator Type :

Slider

Housing Material :

Polybutylene Terephthalate (PBT)

Contact Gender :

Socket

Housing Color :

Natural

Minimum Operating Temperature :

- 20 C

Termination Style :

Through Hole

Base/Housing Material :

PBT (Polybutylene Terephthalate)

Mounting Angle :

Vertical

Subcategory :

FFC and FPC Connectors

IEC Conformance :

No

Contact Pattern :

RECTANGULAR

Termination Type :

Solder

Operating Temperature :

-20 to 80 °C

Product Category :

FFC and FPC Connectors

Number Of PCB Rows :

2

Filter Feature :

No

Pbfree Code :

yes

Voltage Rating Max :

200V

Mounting Style :

Through Hole

Current Rating (Max) :

1/Contact(A)

Operating Temp Range :

-20C to 80C

Mounting :

Through Hole

Orientation :

Vertical

Total Number of Contacts :

22

Option :

GENERAL PURPOSE

Reference Standard :

UL

Body Depth :

0.386 inch

Insertion Force-Max :

ZIF N

Packaging :

Tray

Contact Material :

Phosphor Bronze

Mating Contact Pitch :

0.049 inch

Type :

FPC Connector

Product Length :

33.25 mm

Package :

Box

Terminal Length :

0.138 inch

Body Orientation :

Straight

Series :

05597

Product :

Board Mount

Product Length (mm) :

33.25(mm)

MIL Conformance :

No

ECCN Code :

EAR99

Number of Contacts :

22(POS)

HTS Code :

8536.69.40.51

PCB Contact Pattern :

STAGGERED

Mixed Contacts :

No

Number of Contact Rows :

1

Plating Thickness :

39u inch

Pitch (mm) :

1.25(mm)

Mounting Option 1 :

LOCKING

Contact Resistance Max :

20(mohm)

Manufacturer :

Molex

Maximum Operating Temperature :

+ 80 C

Number of Positions :

22 Position

Product Status :

Active

RoHS :

Details

Additional Feature :

ROHS COMPLIANT, TRAY PACKAGING

Wire/Cable Type :

FFC/FPC

PCB Contact Row Spacing :

1.9812 mm

Voltage Rating :

200 V

Mounting Type :

BOARD

Brand :

Molex

Reliability :

COMMERCIAL

Product Type :

FFC and FPC Connectors

Body Breadth :

0.197 inch

Product Height (mm) :

7.5(mm)

Pitch :

2.5000 mm

Factory Lead Time :

10 Weeks

Termination Method :

Solder

Flammability Rating :

UL 94 V-0

Terminal Pitch :

1.25 mm

Contact Plating :

Tin-Bismuth

Reach Compliance Code :

Compliant

Current Rating :

1 A

Product Depth (mm) :

5(mm)

Accessory Type :

-

Contact Location :

-

Connector Type :

FFC/FPC CONNECTOR
