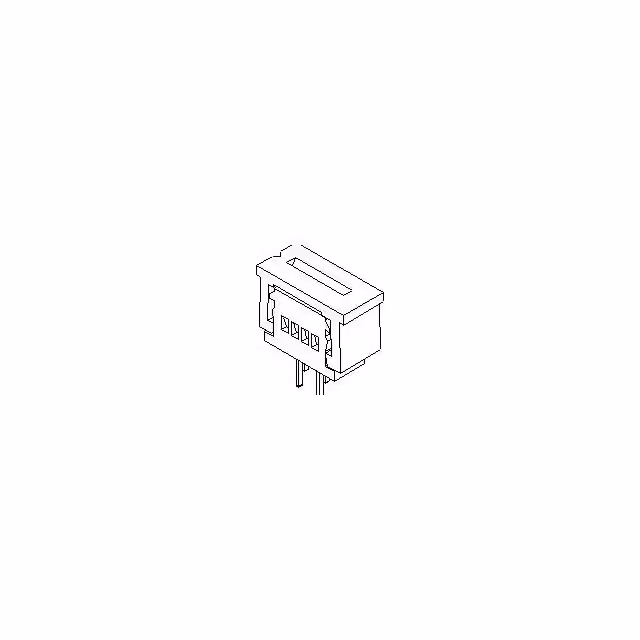

39-53-2315

Manufacturer :

Molex

Product Category :

FFC, FPC (Flat Flexible) Connector Assemblies

Package :

Box

Connector Type :

FFC/FPC CONNECTOR

Mixed Contacts :

No

Mounting Type :

BOARD

Contact Material :

Phosphor Bronze

Current Rating :

1 A

Subcategory :

FFC and FPC Connectors

Plating Thickness :

39u inch

Terminal Pitch :

1.25 mm

Mounting Angle :

Vertical

PCB Contact Row Spacing :

1.9812 mm

Material :

Polyester

IEC Conformance :

No

ECCN Code :

EAR99

Product :

Board Mount

Mating Contact Pitch :

0.049 inch

Number of Contacts :

31(POS)

Gender :

Receptacle

Total Number of Contacts :

31

Pitch (mm) :

1.25(mm)

Reach Compliance Code :

Compliant

Additional Feature :

ROHS COMPLIANT, TRAY PACKAGING

Filter Feature :

No

Body Depth :

0.386 inch

Accessory Type :

-

Pbfree Code :

yes

Series :

05597

MIL Conformance :

No

Number of Positions :

31 Position

Insertion Force-Max :

ZIF N

Option :

GENERAL PURPOSE

Orientation :

Vertical

Wire/Cable Type :

FFC/FPC

Product Status :

Active

Type :

FPC Connector

Reference Standard :

UL

UL Flammability Code :

94V-0

Maximum Operating Temperature :

+ 80 C

Product Height (mm) :

5.4(mm)

RoHS :

Details

Contact Location :

-

Product Length (mm) :

44.5(mm)

Product Depth (mm) :

5(mm)

Contact Plating :

Tin-Bismuth Plated Contacts

Product Category :

FFC and FPC Connectors

Contact Pattern :

RECTANGULAR

Housing Material :

Polybutylene Terephthalate (PBT)

Body Breadth :

0.197 inch

Actuator Type :

Slider

Reliability :

COMMERCIAL

Brand :

Molex

Packaging :

Tray

Voltage Rating :

200 V

Termination Method :

Solder

PCB Contact Pattern :

STAGGERED

Terminal Length :

0.138 inch

Pitch :

1.25 mm

Minimum Operating Temperature :

- 20 C

Mounting Style :

Through Hole

Product Type :

FFC and FPC Connectors

HTS Code :

8536.69.40.51

DIN Conformance :

No

Operating Temp Range :

-20C to 80C

Number Of PCB Rows :

2

Contact Gender :

SKT

Contact Resistance Max :

20(mohm)

Flammability Rating :

UL 94 V-0

Mounting Option 1 :

LOCKING

Number of Contact Rows :

1

Manufacturer :

Molex

Termination Type :

Solder

Termination Style :

Through Hole

Body Orientation :

RIGHT ANGLE

Contact Style :

BELLOWED TYPE
