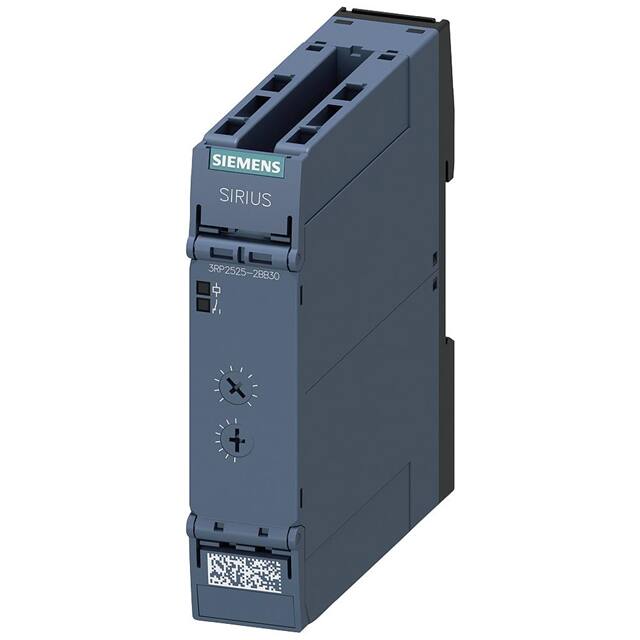

3RP25252BB30

Manufacturer :

Siemens

Product Category :

Time Delay Relays

Product Status :

Active

Contact Configuration :

DPDT

Base Product Number :

3RP2525

Type :

3RP2525-2BB30

Rated control supply voltage at AC 60 Hz :

24 - 24

Maximum Operating Temperature :

+60°C

Terminal Type :

Push In

Width :

22.5

Dim :

(W x H x D) 22.5 x 100 x 90 mm

Timing Initiate Method :

Input Voltage

Rated control supply voltage at DC :

24 - 24

Minimum Operating Temperature :

-25°C

Supply Voltage :

24V AC/DC

Type of electric connection :

Spring clamp connection

Manufacturer :

Siemens

Electrical lifespan :

100000

Delay Time :

0.05 Sec ~ 100 Hrs

Rated control supply voltage at AC 50 Hz :

24 - 24

Mounting Type :

DIN Rail

Circuit :

DPDT (2 Form C)

Durability :

1000 0000

Termination Style :

Spring Terminal

Height :

100mm

Voltage - Supply :

24VAC/DC

Relay Type :

Mechanical Relay

Number of Contacts :

2

Function :

On-Delay

Content :

1pc(s)

Max. temperature :

+60°C

Switch Configuration :

DP4T

Series :

3RP25

Contact Material :

Silver Tin Oxide

Reach Compliance Code :

Unknown

Min. temperature :

-25°C

Length :

22.5mm

Mode of Operation :

On Delay

Power Supply :

External

Depth :

90mm

Timing Adjustment Method :

Screwdriver Slot

Voltage type for actuating :

AC/DC

Contact Rating @ Voltage :

3A @ 250VAC

RoHS-compliant :

yes
