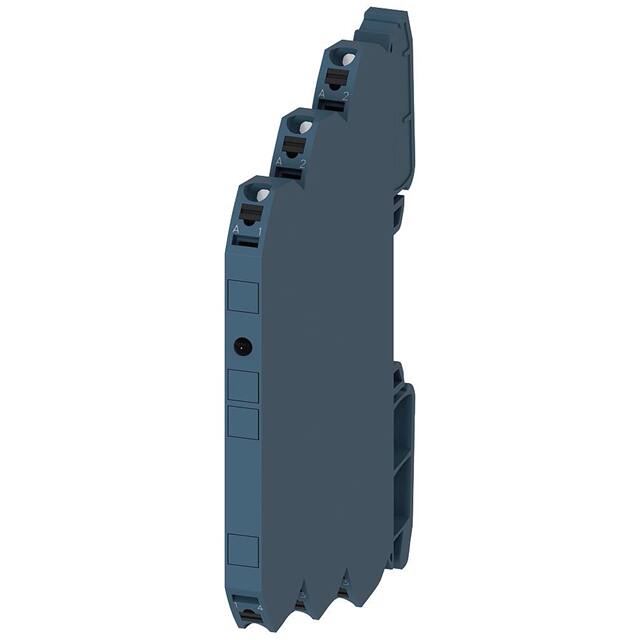

3RQ30502SM50

Manufacturer :

Siemens

Product Category :

Signal Relays, Up to 2 Amps

Product Status :

Active

Release Time :

2 ms

Series :

SIRIUS 3RQ3

Content :

5pc(s)

Switching voltage (max.) :

60V DC

Relay Type :

GENERAL PURPOSE

Dim :

(W x H x D) 6.2 x 93 x 72.5 mm

Base Product Number :

3RQ3050

Operate Time :

0.3 ms

Operating Temperature :

-25°C ~ 60°C

Width :

6.2

Contact Material :

-

Fall time :

2ms

Termination Style :

Spring Terminal

Length :

93mm

Type :

3RQ3050-2SM50

Depth :

72.5mm

Mounting Type :

DIN Rail

Must Release Voltage :

-

Rated control supply voltage at AC 50 Hz :

0 - 0

Number of contacts as normally closed contact :

0

Seal Rating :

-

Package :

Box

Features :

Lighted Indicator

Max. temperature :

+60°C

Dimensions :

6.2 x 93 x 72.5mm

Contact Form :

SPST-NO (1 Form A)

Voltage type for actuating :

DC

Rated control supply voltage at AC 60 Hz :

0 - 0

With detachable clamps :

No

Degree of protection (IP) :

IP20

Height :

93mm

Coil Voltage :

24VDC

Coil Type :

Non Latching

Min. temperature :

-25°C

Input Current :

0.5A

Maximum Operating Temperature :

+60°C

Must Operate Voltage :

-

Number of contacts as normally open contact :

1

Number of contacts as change-over contact :

0

Operating Temperature Range :

-25 → +60°C

RoHS-compliant :

yes

Contact Rating (Current) :

500 mA

Rated control supply voltage at DC :

11 - 30

Switching Voltage :

60VDC - Max

Connection :

Spring-loaded connector

Coil Insulation :

-
