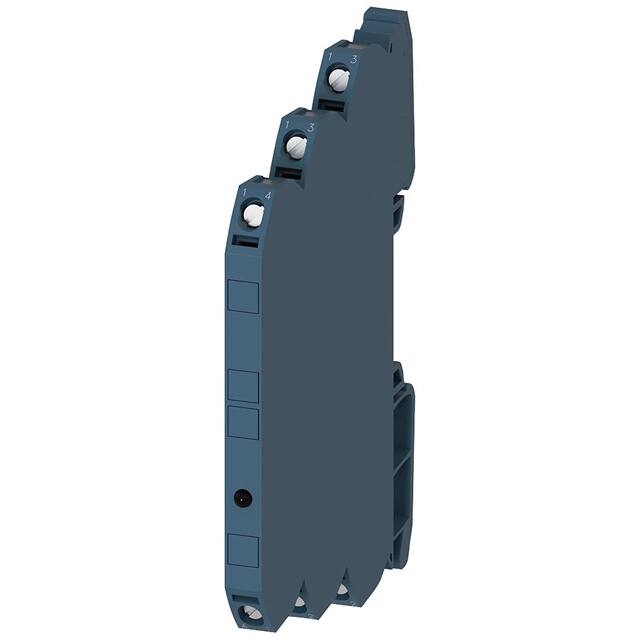

3RQ30701SG30

Manufacturer :

Siemens

Product Category :

Signal Relays, Up to 2 Amps

Coil Voltage :

110 ~ 230VAC/DC

Coil Type :

Non Latching

Height :

93mm

Type :

3RQ3070-1SG30

Operating Temperature :

-25°C ~ 60°C

Must Operate Voltage :

-

Contact Rating (Current) :

500 mA

Length :

93mm

Termination Style :

Screw Terminal

Mounting Type :

DIN Rail

Number of contacts as normally closed contact :

0

Contact Form :

SPST-NO (1 Form A)

Type of electric connection :

Screw connection

Max. temperature :

+60°C

Features :

Lighted Indicator

Rated control supply voltage at AC 50 Hz :

110 - 230

Dim :

(W x H x D) 6.2 x 93 x 72.5 mm

Maximum Operating Temperature :

+60°C

Voltage type for actuating :

AC/DC

Connection :

Screws

RoHS-compliant :

yes

Degree of protection (IP) :

IP20

Switching Voltage :

30VDC - Max

Series :

SIRIUS

Switching voltage (max.) :

30V DC

Content :

5pc(s)

Depth :

72.5mm

Operating Temperature Range :

-25 → +60°C

Input Current :

0.5A

Number of contacts as change-over contact :

0

Seal Rating :

-

With detachable clamps :

No

Coil Insulation :

-

Product Status :

Active

Release Time :

7 ms

Operate Time :

5 ms

Contact Material :

-

Number of contacts as normally open contact :

1

Rated control supply voltage at AC 60 Hz :

110 - 230

Must Release Voltage :

-

Base Product Number :

3RQ3070

Relay Type :

GENERAL PURPOSE

Min. temperature :

-25°C

Dimensions :

6.2 x 93 x 72.5mm

Fall time :

7ms

Rated control supply voltage at DC :

110 - 230

Width :

6.2
