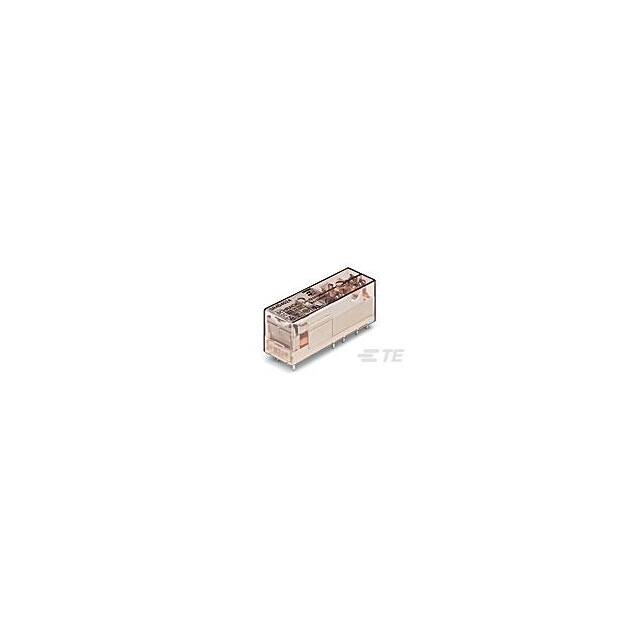

5-1415055-1

Manufacturer :

TE Connectivity Potter & Brumfield Relays

Product Category :

Unclassified

Package / Case :

Dust Cover

Rad Hardened :

No

Product Type :

Safety Relays

Weight :

30 G

Coil Voltage DC :

40V

Pin Count :

10

Voltage Rating (VAC) :

400(V)

Contact Voltage(AC)-Max :

240 V

Brand Name :

CII

Sealing :

RT3

ELV :

Compliant

Type :

SAFETY RELAY

Coil Operate Voltage(DC) :

30 V

Contact Material :

Silver Tin Oxide

Relay Function :

4PST

PCB Hole Count :

10

Radiation Hardening :

No

Coil/Input Supply Type :

DC

Product Status :

Active

Max Current Rating :

8 A

Termination Type :

Solder

End Contact Material :

Silver Tin Oxide

Operating Temp Range :

-25C to 70C

Coil Suppression Diode :

No

Throw Configuration :

DPST

Pbfree Code :

yes

RoHS :

Details

Packaging :

Tube

Min Operating Temperature :

-25 °C

ECCN Code :

EAR99

Relay Type :

SAFETY RELAY

Dielectric Strength Between Coil and Contacts :

4000 Vrms

Max Operating Temperature :

70 °C

Coil Current :

20(mA)

Terminal Length :

0.0033 inch

Max Voltage Rating (AC) :

400 V

Coil Voltage :

40 VDC

Contact Current(AC)-Max :

8 A

Product Length (mm) :

40(mm)

Contact Resistance :

100 mΩ

Packing Method :

Box

Physical Dimension :

40mm x 13mm x 16.5mm

Number of Terminals :

10

Brand :

TE Connectivity

Surface Mount :

No

Seal :

Unsealed

Relay Construction :

Non-Latching

Dielectric Strength Between Open Contacts :

1500 Vrms

Mounting Style :

Through Hole

Contact Current Rating :

8(A)

Factory Lead Time :

28 Weeks, 2 Days

Input Switching Control Type :

Random

Package :

Box

Series :

SR4

Coil Voltage (DC) :

40 V

Coil Release Voltage(DC) :

4 V

Coil Power :

800 mW

Contact Arrangement :

DPST-NO/DPST-NC

Subcategory :

Relays

Lifecycle Status :

Production (Last Updated: 1 week ago)

LED Indicator :

No

Coil Voltage(DC)-Max :

40 V

Contact Form :

2 Form A/2 Form B

Body Length or Diameter :

40 mm

Product Height (mm) :

16.5(mm)

Reach Compliance Code :

Compliant

Coil Current(DC)-Max :

0.02 A

Product Category :

Safety Relays

Relay Action :

Momentary

Maximum Power Rating :

2KVA

Mounting Feature :

THROUGH HOLE-STRAIGHT MOUNT

Mount :

Through Hole

Reference Standard :

EN; IEC; UL; VDE

Body Breadth :

13 mm

Body Height :

16.5 mm

Dropout Volt :

4VDC

Coil Resistance :

2000 Ω

Product Depth (mm) :

13(mm)

Termination Style :

PC Pin
