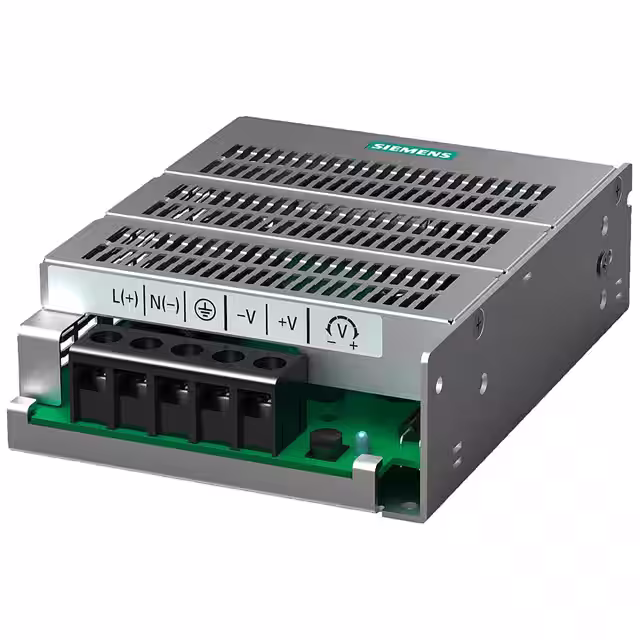

6EP13311LD00

Manufacturer :

Siemens

Product Category :

Min. input voltage :

85V AC

Output Voltage :

24V dc

Surface Mount :

No

Minimum Load Required :

-

Applications :

Hazardous Locations, Industrial, ITE (Commercial)

Voltage - Output 6 :

-

Suitable for safety functions :

No

Package Type :

Enclosed

Manufacturer :

Siemens

Power (Watts) :

50W

Voltage type of supply voltage :

AC

Power :

50.4W

Number of Functions :

1

Temperature Grade :

COMMERCIAL

Efficiency :

86%

JESD-30 Code :

R-XXMA-X6

Dim :

(W x H x D) 97 x 128 x 38 mm

Number of Terminals :

6

Number of Outputs :

1

Features :

Adjustable Output, IP20, Universal Input

Voltage - Output 3 :

-

No. of outputs :

1x

Voltage - Output 1 :

24V

Product Status :

Active

Connection :

Screw Terminals

Reach Compliance Code :

Unknown

Voltage - Output 5 :

-

Degree of protection (IP) :

IP20

Package Shape :

RECTANGULAR

Terminal Form :

UNSPECIFIED

Power Rating :

50W

Analog IC - Other Type :

AC-DC REGULATED POWER SUPPLY MODULE

Input Voltage-Nom :

100 V

Length :

128mm

Output voltage (max.) :

28V DC

Series :

6EP1

Height :

128mm

Input voltage (max.) :

264V AC

Output current (max.) - rounded :

2.1A

Trim/Adjustable Output :

yes

Approval Agency :

CB, CE, CSA, cUL, cULus, cURus, UL

Input Type :

AC

Technology :

Hybrid

Voltage - Output 4 :

-

Rail mounting possible :

No

Output Current :

2.1A

Width :

97mm

Standard Number :

60950-1; UL 508

Type :

PSU100D 24 V/2,1 A

Current - Output (Max) :

2.1A

Total Power Output-Max :

50 W

Size / Dimension :

1.50 L x 3.82 W x 5.04 H (38.0mm x 97.0mm x 128.0mm)

Type of electric connection :

Screw connection

Operating Temperature :

-10°C ~ 70°C (With Derating)

Content :

1pc(s)

Terminal Position :

UNSPECIFIED

Output Voltage-Max :

28 V

Weight :

0.35kg

Max. output current :

2.1A

Output Voltage-Min :

22 V

Voltage - Output 2 :

-

Mounting Type :

Chassis Mount

Depth :

38mm

Package :

Bulk

Input Voltage :

85 → 264V ac
