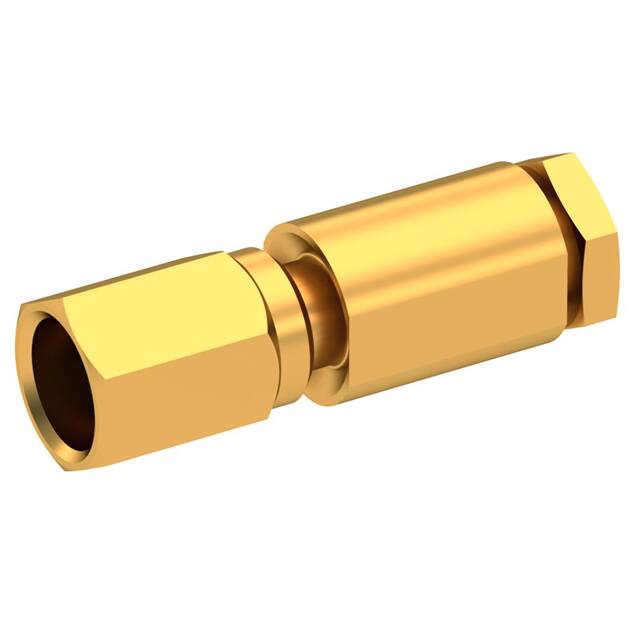

7002-1542-010
Or copy the link below:
- Mfr.Part #
- 7002-1542-010
- Manufacturer
- Radiall USA, Inc.
- Package / Case
- Datasheet
- Download
- Description
- SSMC / STRAIGHT PLUG FEMALE SOLD
- Stock
- 172
- In Stock ：
- 172
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Radiall USA, Inc.
- Product Category :
- Coaxial Connector (RF) Assemblies
- Product Length :
- 13.46 mm
- Option :
- GENERAL PURPOSE
- Subcategory :
- RF Interconnects
- Termination Style :
- Solder
- Base Product Number :
- 7002-1542
- Characteristic Impedance :
- 50 Ω
- MIL Conformance :
- yes
- Termination Type :
- Solder
- Shield Termination :
- Clamp
- Mounting Style :
- Cable Mount / Free Hanging
- Product Status :
- Active
- Voltage Rating :
- 250 V
- Housing Color :
- Gold
- Series :
- SSMC
- VSWR :
- 1.39
- Contact Finish Termination :
- Gold (Au)
- Fastening Type :
- Threaded
- Mounting Feature :
- -
- RoHS :
- Compliant
- Dielectric Material :
- Polytetrafluoroethylene (PTFE)
- Body Orientation :
- Straight
- Additional Feature :
- STANDARD: MIL-PRF-39012, INSERTION LOSS MAX AT 1.5 GHZ
- Terminate To :
- Coaxial Cable
- Max Frequency :
- 12.4 GHz
- Termination Method :
- Solder
- Contact Plating :
- Gold
- IP Rating :
- -
- Contact Material :
- BERYLLIUM COPPER
- RF Series :
- RP-SSMC
- Product Category :
- RF Connectors / Coaxial Connectors
- JESD-609 Code :
- e4
- Mounting Type :
- Free Hanging (In-Line)
- Features :
- -
- Contact Termination :
- Solder
- Ingress Protection :
- -
- Mating Cycles :
- 500
- Polarity :
- Reverse
- IEC Conformance :
- No
- Factory Lead Time :
- 7 Weeks, 6 Days
- Packaging :
- Bulk
- Frequency - Max :
- 12.4 GHz
- Package :
- Box
- Body Finish :
- Gold
- Mounting :
- Cable Mount
- Body Style :
- Screw On
- Body/Shell Style :
- PLUG
- Insertion Loss :
- -
- Orientation :
- Straight
- Number of Ports :
- 1
- Center Contact Material :
- BERYLLIUM COPPER
- Impedance :
- 50 OHM
- Coupling Type :
- Threaded
- Operating Frequency-Max :
- 12.4 GHz
- Product Type :
- RF Connectors / Coaxial Connectors
- Product :
- Connectors
- Gender :
- PLUG
- Contact Gender :
- FEMALE
- Panel Mount :
- No
- Manufacturer :
- Radiall
- Connector Style :
- SSMC
- Center Contact Plating :
- Gold
- Filter Feature :
- No
- Connector Type :
- Plug, Female Socket
- Brand :
- Radiall
- Operating Temperature :
- -65 to 165 °C
- Cable Group :
- RG-405 (.085 Semi Rigid)
- Body Material :
- Brass
- DIN Conformance :
- No
- Cable Type :
- RG-405
- Reach Compliance Code :
- Compliant
- Includes :
- -
- Datasheets
- 7002-1542-010
Plug, Female Socket Threaded 50 Ohm Bulk SSMC Solder 1 Port Polytetrafluoroethylene (PTFE) -65 to 165 °C
7002-1542-010 Overview
The product is packaged in Plug, Female Socket.Free Hanging (In-Line) is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the SSMC Series, it can be found in this category.There are also other features such as STANDARD: MIL-PRF-39012, INSERTION LOSS MAX AT 1.5 GHZ, to name only a few.A variety of tasks can be managed via its 1 ports.The device is operating at -65 to 165 °C Operating Temperature.This device has a maximum frequency of 12.4 GHz.
7002-1542-010 Features
SSMC series
7002-1542-010 Applications
There are a lot of Radiall
7002-1542-010 Coaxial Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
