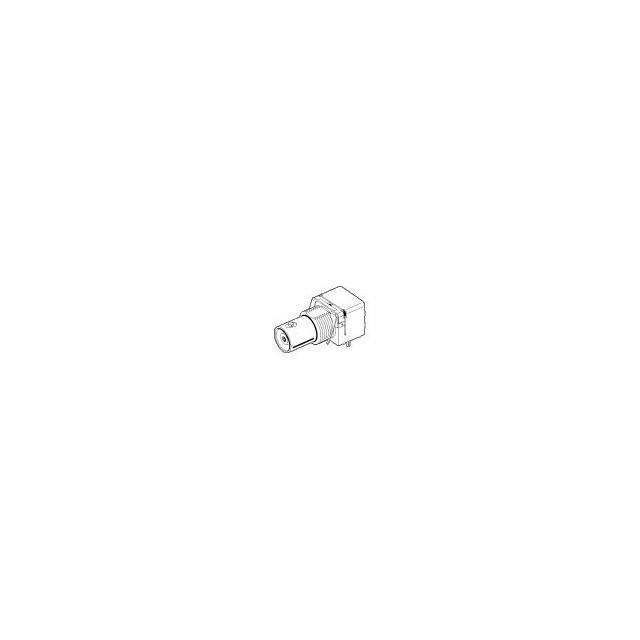

73100-0166

Manufacturer :

Molex

Product Category :

Coaxial Connector (RF) Assemblies

Filter Feature :

yes

Brand :

Molex

Pbfree Code :

yes

Contact Gender :

FEMALE

Mounting Style :

Through Hole

Frequency :

2 GHz

Coupling Type :

Bayonet

Impedance :

50Ω

DIN Conformance :

No

Termination :

Solder

Contact Material :

Phosphor Bronze

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Rad Hardened :

No

Connector Type :

BNC

Body Material :

Thermoplastic

Mounting Type :

BOARD

Body Finish :

Nickel

JESD-609 Code :

e4

Termination Style :

Solder

Packaging :

Tray

Reach Compliance Code :

Unknown

Operating Frequency-Max :

4 GHz

Contact Plating :

Gold

Product Status :

Active

Contact Termination :

Solder

Gender :

JACK

Panel Mount :

yes

Body Plating :

Nickel

Style :

PCB

Characteristic Impedance :

50 Ω

Contact Finish Termination :

Gold (Au)

Base Product Number :

73100

Polarity :

Standard

MIL Conformance :

No

Terminate To :

PCB

Insertion Loss :

0.2 dB

Manufacturer :

Molex

Plating :

Nickel

Series :

73100

VSWR :

1.3

Type :

BNC

Subcategory :

RF Interconnects

Body/Shell Style :

Receptacle

Country of Origin :

TW

Termination Type :

Solder

RF Series :

BNC

Option :

GENERAL PURPOSE

IEC Conformance :

No

Lifecycle Status :

Production (Last Updated: 2 years ago)

RoHS :

Non-Compliant

Body Style :

RIGHT ANGLE

Mount :

Through Hole

Product :

PCB Connectors

Product Type :

RF Connectors / Coaxial Connectors

Product Category :

RF Connectors / Coaxial Connectors

Isolation :

Non-Isolated

Orientation :

RIGHT ANGLE

Package :

Box
