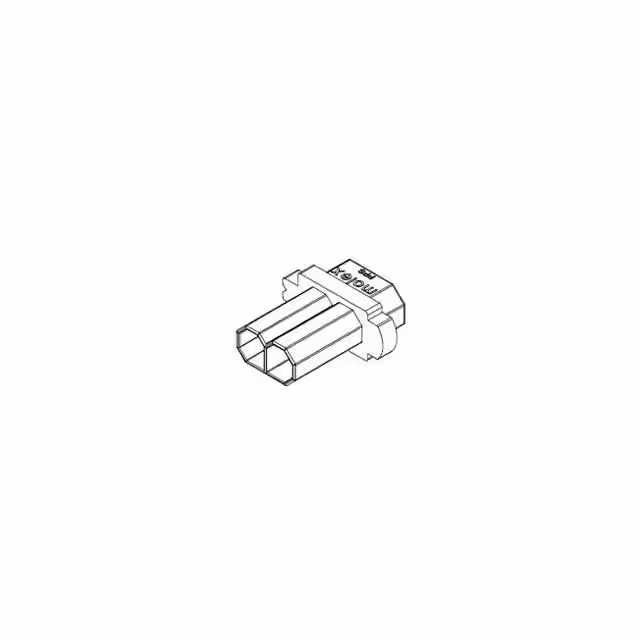

78196-1001

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

RoHS :

Compliant

Manufacturer :

Molex

Type :

Housing

Number of Contacts :

2(POS)

Pitch (mm) :

5.4(mm)

Number of Contact Rows :

1

Orientation :

Straight

Current Rating :

600 mA

Mount :

CABLE

Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Max Operating Temperature :

150 °C

Product Depth (mm) :

21.8(mm)

Body Orientation :

Straight

Wire Gauge (Max) :

18 AWG

Connector Type :

RECTANGULAR POWER CONNECTOR

Termination :

Crimp

Glow Wire Compliant :

Non-Compliant

Min Operating Temperature :

-20 °C

Product Height (mm) :

8.7(mm)

Housing Material :

Polyphenylene

Country of Origin :

SG

Current Rating (Max) :

7/Contact(A)

Operating Temp Range :

-20C to 150C

Number of Positions :

2

Number of Circuits :

40

Reach Compliance Code :

Unknown

Product Status :

Active

Pitch :

5.4 mm

Product Length (mm) :

20.4(mm)

Series :

*

Package :

Box

Contact Gender :

FEMALE

Gender :

RCP

Packaging :

Bag

Manufacturer Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Number of Rows :

1

Housing Color :

Black

Wire Gauge (Min) :

22 AWG
