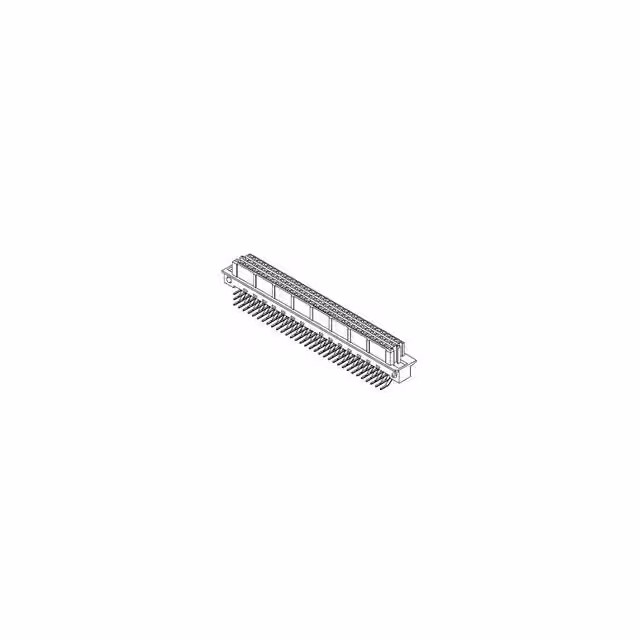

85052-0311

Manufacturer :

Molex

Product Category :

DIN 41612

Mating Contact Row Spacing :

0.1 inch

Body/Shell Style :

PLUG

Series :

*

Number of Columns :

32

Rated Current (Signal) :

1.5 A

UL Flammability Code :

94V-0

IEC Conformance :

yes

Reference Standard :

UL, CSA

Termination Method :

Solder

Number of Contact Rows :

3

Terminal Pitch :

2.54 mm

Current Rating (Max) :

1/Contact(A)

Pbfree Code :

yes

Gender :

F

Mount :

Through Hole

Number Of PCB Rows :

3

Filter Feature :

No

Terminal Length :

0.118 inch

PCB Contact Pattern :

RECTANGULAR

ECCN Code :

EAR99

Insertion Force-Max :

.9452 N

Data Rate :

622 Mbps

Number of Positions :

96

Body Orientation :

RIGHT ANGLE

Mounting Option 1 :

LOCKING

Number of Rows :

3

Contact Gender :

FEMALE

Option :

GENERAL PURPOSE

Min Operating Temperature :

-55 °C

Contact Plating :

Gold

Contact Style :

SQ PIN-SKT

Termination Type :

Solder

Reach Compliance Code :

Compliant

Country of Origin :

In

Mounting Type :

BOARD

Max Operating Temperature :

125 °C

Contact Resistance :

20 mΩ

Dielectric Withstanding Voltage :

1000VAC V

Total Number of Contacts :

96

Mating Contact Pitch :

0.1 inch

Polarization Key :

ENDS

DIN Conformance :

yes

Max Voltage Rating (AC) :

1 kV

Orientation :

RIGHT ANGLE

RoHS :

Compliant

Number of Contacts :

96(POS)

Voltage Rating (AC) :

250 V

Mounting Style :

Through Hole

Insulation Resistance :

1000000000 Ω

Current Rating :

1 A

Manufacturer :

Molex

Additional Feature :

STANDARDS: DIN 41612; IEC 603-2

Durability :

400 Cycles

Body Depth :

0.418 inch

Package :

Box

Pitch :

2.54 mm

Pitch (mm) :

2.54(mm)

Product Length (mm) :

94(mm)

Reliability :

COMMERCIAL

Voltage Rating Max :

250VAC

Plating Thickness :

24u inch

Type :

DIN 41612

Name of Rows Loaded :

A,B,C

Mixed Contacts :

No

Connector Type :

BOARD EURO CONNECTOR

Body Breadth :

0.413 inch

Packaging :

Tray

Number of Circuits :

96

Contact Material :

COPPER ALLOY

Operating Temp Range :

-55C to 125C

Subcategory :

Headers and Edge Type Connectors

PCB Contact Row Spacing :

2.54 mm

Product Height (mm) :

10.5(mm)

Product Depth (mm) :

17.72(mm)

Termination :

Solder

Product Status :

Active

MIL Conformance :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

HTS Code :

8536.69.40.40
