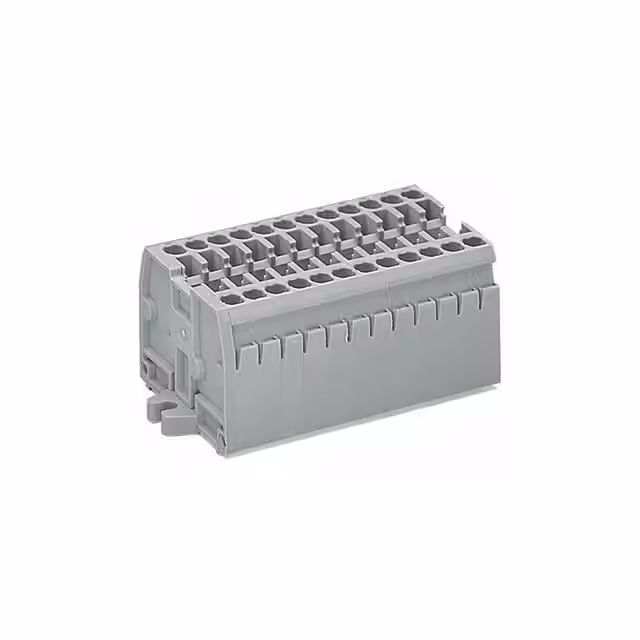

869-109

Manufacturer :

WAGO

Product Category :

Specialized

Number of Levels :

1

Color :

Gray

Stripping Length :

6mm ~ 7mm

Housing Color :

Gray

Manufacturer :

Wago

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 4

Width :

59.5

Connection Type :

Spring Clamp

Rated current In :

24

Length :

33.4

Current - IEC :

24 A

Package :

Box

Operating Temperature :

-

Terminal - Width :

59.5mm

ECCN (US) :

EAR99

Transparent :

No

Number of Poles :

9

HTS :

8536.90.40.00

Number of Positions :

18

Type :

Middle

Series :

-

Wire Gauge or Range - mm² :

0.08-2.5mm²

Termination Style :

Push In, Spring

Approvals :

cURus

Height (Max) :

1.087 (27.61mm)

Wire Gauge or Range - AWG :

12-28 AWG

Features :

-

Automotive :

No

Connectable conductor cross section solid-core :

0.08 - 2.5

Material Flammability Rating :

UL94 V-0

Material - Insulation :

-

Height :

33.4

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 2.5

RoHS :

yes

Voltage - IEC :

500 V

Product Status :

Active

Depth :

27.6

Mounting Type :

Surface Mount

Connectable conductor cross section multi-wired :

0.08 - 2.5

EU RoHS :

Compliant

PPAP :

No

Inflammability class of insulation material according to with UL94 :

V0
